Explore Our 4-Axis DD Rotary Table Range

FEATURES

High Stability

With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.


Ultra-high Precision

The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″.


High Clamping High Force

The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity.


Super Large Torque

The torque motor originally developed adopts the innovative design, with the efficiency improving 63% than that of general motor, thereby ensuring the highly-efficient processing in super large torque.


High efficiency

With the maximum speed of revolution being 400rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency.


APPLICATION

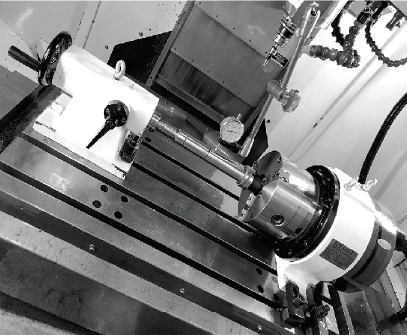

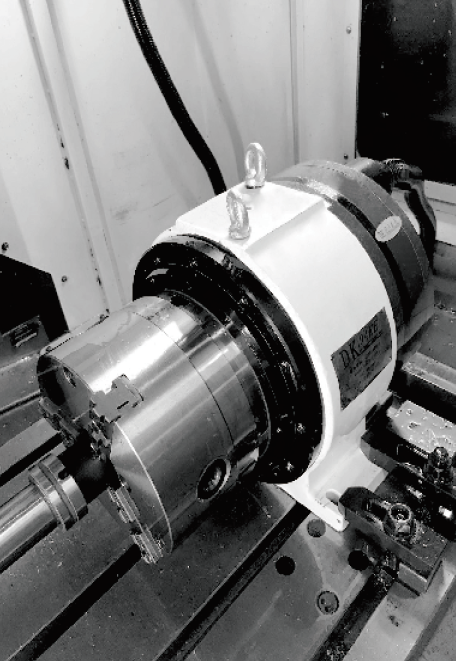

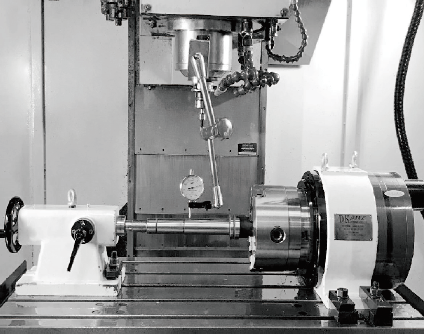

Direct drive 4-Axis Rotary Table

Direct drive 4-Axis Rotary Table

Direct drive 4-Axis Rotary Table

Direct drive 4-Axis Rotary Table

Direct drive 4-Axis Rotary Table

Direct drive 4-Axis Rotary Table

APPLICATION CASE

Discuss Your CNC Spindle or Motion Component Project

Share your machine type, machining process, performance targets or existing component specifications with Haozhi. Our technical team can support spindle selection, application matching, custom development and motion-component integration for new equipment and upgrade projects.
