Explore Our 5-Axis DD Rotary Table Range

FEATURES

High efficiency

The maximum revolving speed is 3000rpm. The machineis different from the worm and gear type of external drive turntable, and can realize high-speed and high-efficiency processing.


Super Large Torque

The torque motor originally developed adopts the innovative design, with the efficiency improving 63% than that of general motor, thereby ensuring the highly-efficient processing in super large torque.


Ultra-high Precision

The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″.


High Clamping High Force

The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity.


Power-off Self-locking

The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the machine tool) to prevent collision .


High Stability

With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.

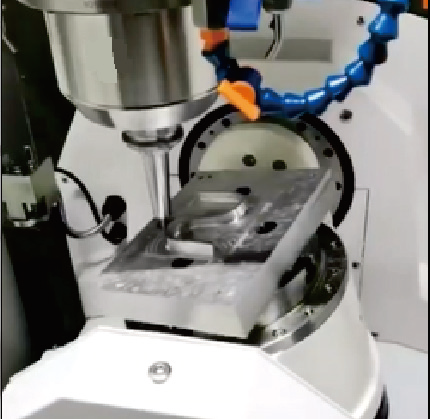

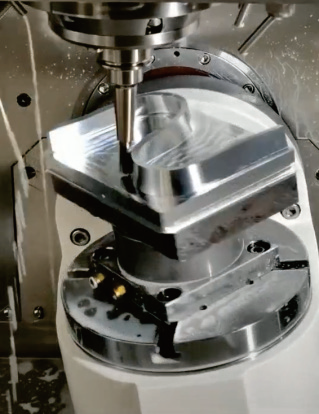

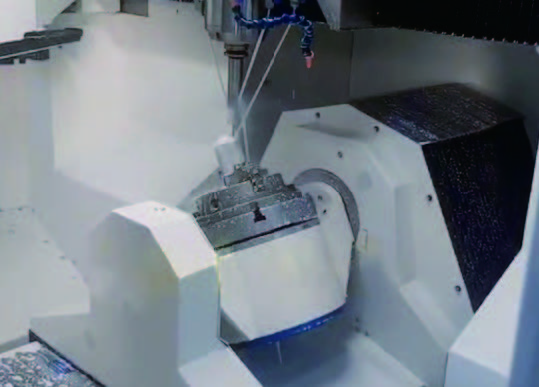

APPLICATION

5-Axis DD Rotary Table

5-Axis DD Rotary Table

5-Axis DD Rotary Table

5-Axis DD Rotary Table

5-Axis DD Rotary Table

5-Axis DD Rotary Table

APPLICATION CASE
