Direct-Drive Tool Grinding Rotary Tables

This range covers direct-drive rotary tables and multi-axis heads developed for high-end tool grinders and laser tooling systems. Different structures address tool holding, tilting, indexing, workpiece load and machine-layout requirements.

Explore Our Direct Drive Tool Grinding 4-Axis Rotary Table Range

FEATURES

High precision segmentation

High precision 26-bit encoder, positioning accuracy ±3 ", repetition accuracy ±1".

High load capacity

With the application of high rigidity bearings, the load can be 40kg and the overturning rigidity can be up to 7000Nm/mrad.

High precision

Adopt high precision bearing, rotation accuracy within 0.001mm.

Strong compatibility

It can realize the compatibility of BT50, Chopelin, reset tool holder and hydraulic tool holder.

Rich configuration

With independent innovative built-in cylinder, it can achieve high thrust, release and clamp loose knife functions.

APPLICATION

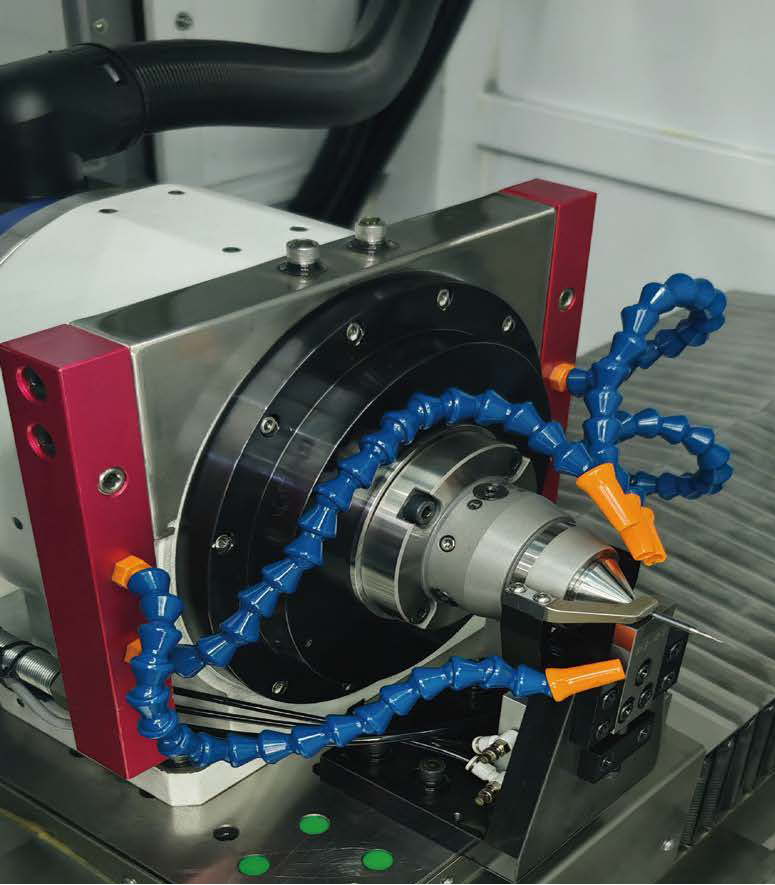

Tool Grinding 4-Axis Rotary Table

Tool Grinding 4-Axis Rotary Table

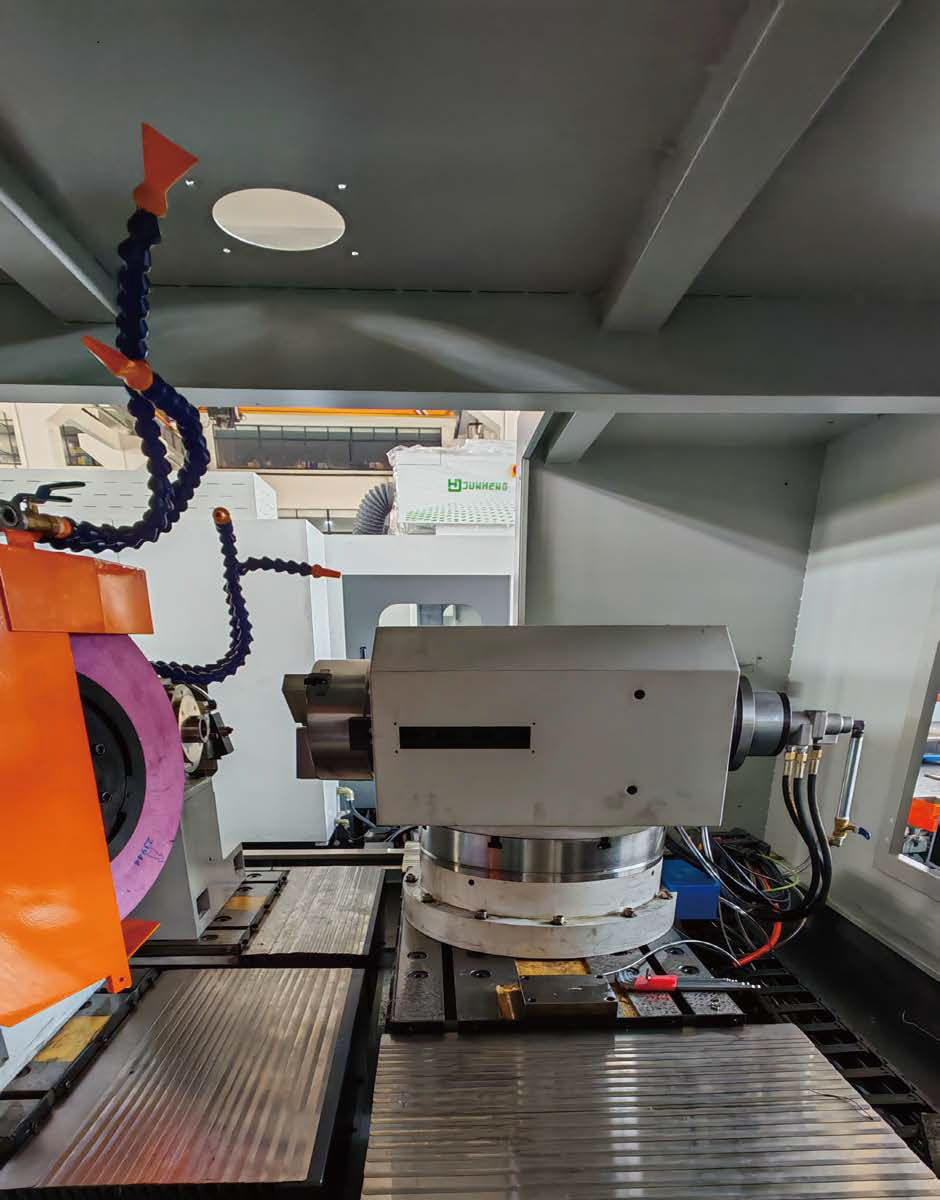

Direct drive tool grinding

Direct drive tool grinding
