Explore Our Servo Motor Range

XtraforsBL Highly dynamic AC servomotors

XtraforsBL Highly dynamic AC servomotors

A high torque-to-inertia ratio defines the XtraforsBL range. Its low-inertia construction supports rapid acceleration, while standard and customized versions allow the motor to be matched to different machine axes.

XtraforsBR Series Multi-Pole Brushless Motor

XtraforsBR Series Multi-Pole Brushless Motor

AC Servomotors

BR series multi-pole brushless motor, originally developed for direct drive use in exoskeletons and similar applications where a high torque to weight ratio with a very compact volume is needed. XtraforsBR high efficiency allows high autonomy in Battery powered systems.

FC 13 Slotless Servo Motor

FC 13 Slotless Servo Motor

It is a small motor with a very High Speed and Low Voltage (48VDC 20.000 r.p.m).

MA-EE EEx d IIC Explosion-Proof Servo Motors

MA-EE EEx d IIC Explosion-Proof Servo Motors

The MA-EE series is intended for hazardous-area motion systems rather than ordinary factory automation. Its EEx d IIC construction follows the stated European explosion-protection requirements, with AC or DC brushless versions and integrated feedback or brake options.

BF Series Washdown Servo Motors

BF Series Washdown Servo Motors

The BF Series is designed for machinery exposed to frequent washdown, moisture or demanding cleaning routines. Its stainless-steel housing and shaft, smooth exterior surfaces, resolver feedback and IP67/IP69K protection distinguish it from standard industrial servo motors.

BL 220–221 High-Torque AC Servo Motors

BL 220–221 High-Torque AC Servo Motors

The BL 220–221 series is intended for motion axes that need strong torque without an oversized motor frame. Its compact construction, low inertia and high-speed capability support fast acceleration and responsive control, while customized versions allow the motor to be adapted to different industrial machine requirements.

BL 190–192 Large-Frame AC Servo Motors

BL 190–192 Large-Frame AC Servo Motors

BL 190–192 narrows the selection to the largest named frame group in this set. High dynamic response, low maintenance and four connection-box positions support installation on larger industrial motion axes.

BL 110/140/190 Brushless AC Servo Motors

BL 110/140/190 Brushless AC Servo Motors

Resolver or Hall feedback allows the BL 110, 140 and 190 frames to match different control architectures. Four connection-box positions also give machine builders more flexibility when routing motor cables.

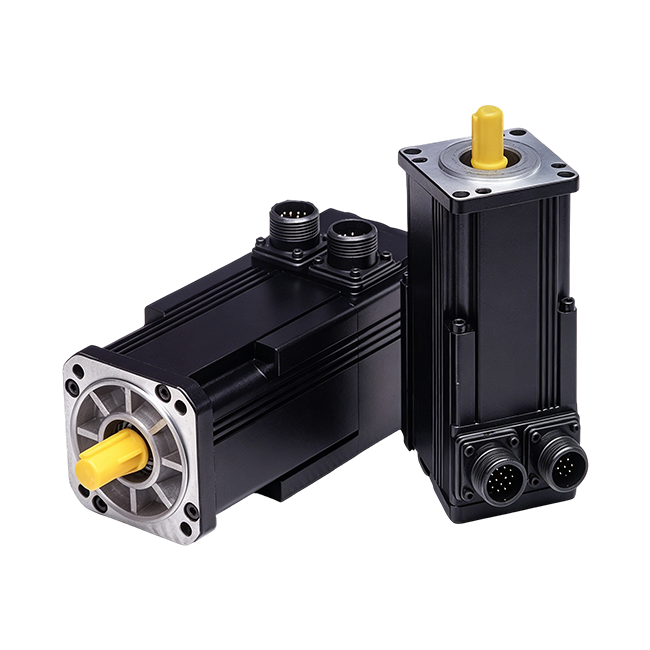

BL 40/50/70 Standard AC Servo Motors

BL 40/50/70 Standard AC Servo Motors

The standard BL 40, 50 and 70 range should focus on base motor configurations for general machine-axis integration. Brake-equipped versions are covered separately, keeping the two selection paths clear.

BL 30 High-Response AC Servo Motor

BL 30 High-Response AC Servo Motor

BL 30 addresses smaller motion axes that still require fast dynamic response. Its brushless structure removes brush-sparking speed limitations while reducing maintenance and supporting stable thermal performance.

MSA Compact Axial-Flux Servo Motors

MSA Compact Axial-Flux Servo Motors

Axial magnetic flux allows the MSA series to reduce both motor diameter and length. Low cogging and a strong torque-to-volume ratio support machine designs where a conventional radial motor occupies too much space.

MA High-Response Air-Gap AC Servo Motors

MA High-Response Air-Gap AC Servo Motors

Short electrical and mechanical time constants allow the MA series to respond quickly under changing commands. High peak torque at speed, resolver feedback and a strong power-to-weight ratio support manipulator-mounted axes.

CML Square-Frame DC Servo Motors

CML Square-Frame DC Servo Motors

CML packages radial-flux DC servo technology in a compact square housing. The mechanical format makes it a distinct choice from axial-air-gap motors where machine mounting space and housing geometry determine selection.

MSS Ironless-Rotor DC Servo Motors

MSS Ironless-Rotor DC Servo Motors

DC Servo Motors

MAVILOR’s axial air gap dish armature is specially suited for high response servo drives. High and smooth torque to inertia ratio, non cogging torque low speed velocity control makes MAVILOR the motor of choice for the most exacting applications.

The MAVILOR MSS Series servomotors provide a 20% increase in power to weight and volume ratios and a 20% increase in power rate and acceleration capability over previous designs.

Incorporating an ironless rotor design, these industrial strength motors have an extremely long brush life and high efficiency.

MAVILOR MSS Series motors incorporate options of tachometers and fail-safe holding brakes within the motor structure, and in many cases are half the length of equivalently rated conventional motors.

Xtrafors FP Prime No cogging AC servo motors

Xtrafors FP Prime No cogging AC servo motors

The modular construction concept is the basis for the wide range of standard models. The slotless stator design results in outstanding technical properties such as high speed, high torque, zero cogging, minimal torque ripple, high efficiency and high rigidity. Thus, these motors are perfectly suited for various demanding servo applications.

XtraforsBC Compact Hall-Sensor Servo Motors

XtraforsBC Compact Hall-Sensor Servo Motors

For small dynamic axes requiring integrated rotor-position feedback, XtraforsBC combines 57–110 mm sizes with 0.35–2.25 Nm rated torque. The Hall sensor is included within the lightweight motor structure.

FEATURES

APPLICATION

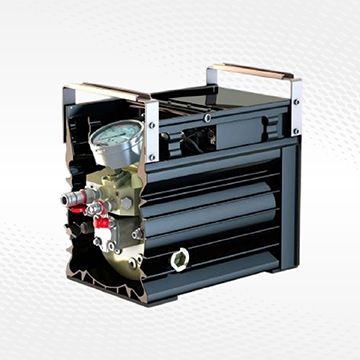

Electric torque wrenches

Electric torque wrenches

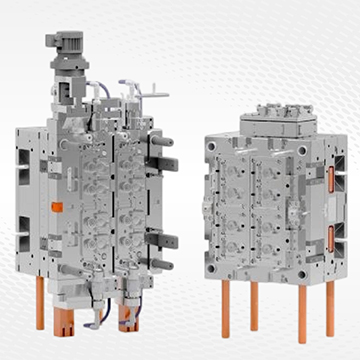

High precision mold

High precision mold

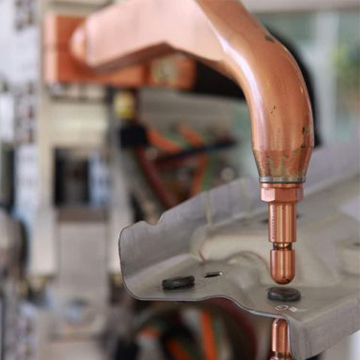

Robotic welding

Robotic welding

Tomography

Tomography

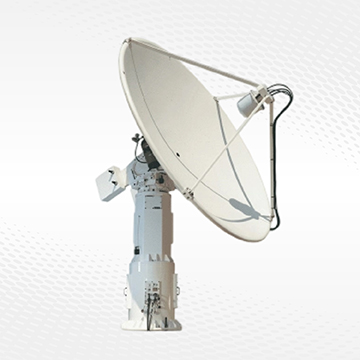

Satellite tracking

Satellite tracking
