DZDA-110 Compact Single-Arm Five-Axis Table

The DZDA-110 is intended for limited machine envelopes and small workpieces. Its 110 mm C-axis face, compact single-arm layout and specified 0.003 mm face runout provide a practical route to five-axis capability without an oversized rotary unit.
Request Now
DZDA-110 Compact Single-Arm Five-Axis Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: DZDA-110-100/200-30/10-A26W-A4 - A Axis / C Axis

A axisC axis
Disk surface diameter(mm)/110
Center height(mm)110/
Disk height(mm)/149
Center hole diameter(mm)/20
Clamping WayAir(0.5-0.6MPa)/
Clamping Torque(N.m)60(@0.6MPa)/
Disk surface runout(mm)/0.003
Disk Radial runout(mm)/0.005
Driving TypeTorque motor direct driveTorque motor direct drive
Voltage for Driver(V)220220
Rated/Maximum Speed(rpm)100/100200/200
Rated/Maximum Torque(N.m)29.6/52.59/30
Rated/Maximum Current(A)1.75/3.20.7/3
Power output S1 100%(kW)0.31kW0.19kW
Power Output S6 40%(kW)0.37kW0.38kW
Air seal gas flow rate(L/min)//
Cooling systemWater coolingNatural cooling
The cooling flow rate//
Motor temperature sensor typeKTY84-130KTY84-130
Positioning Precision(arc-sec)±10 (20)±10 (20)
Repeated Positioning Precision(arc-sec)±2 (4)±2 (4)
Minimum unit("")0.0010.001
Load Capacity(kg)10
Weight(kg)42
Level of ProtectionIP66
Match: Lynuc, HNC, SYNTEC, FANUC, SIENMENS, MITSUBISHI control systems

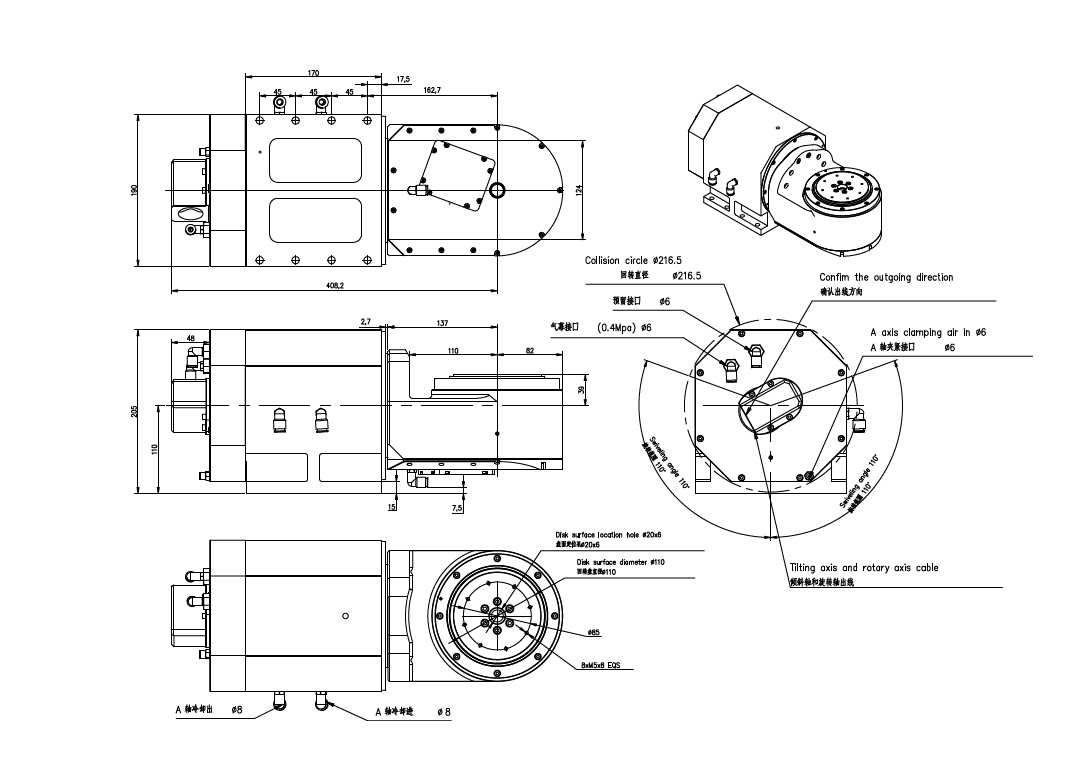

DIMENSIONS
