DZDH-255-200-160-253-A26-A Peak-Torque Rotary Table

This DZDH-255 model provides additional short-duration torque for tougher cutting stages. It delivers 253 Nm continuously and reaches 748 Nm at peak, while a 1,000 Nm moment-load rating and tailstock-assisted capacity support demanding fixtures.

Request Now
DZDH-255-200-160-253-A26-A Peak-Torque Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDH-255-200-160-253-A26-A
Rated speed200 rpm
Max.speed200 rpm
Rated torque253 Nm
Max.torque748 Nm
Rated current17.5 A
Max.current63 A
Number of motor poles30
Rated voltage220 V
Clamp torque500 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated
positioning accuracy		Grating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder typeOptional Mitsubishi,
Fanuc, Siemens, biss-c
Allowable load100 (Tail seat 150) Kg
Allowable workpiece inertia3 kg.m²
Allowable moment load1000 Nm

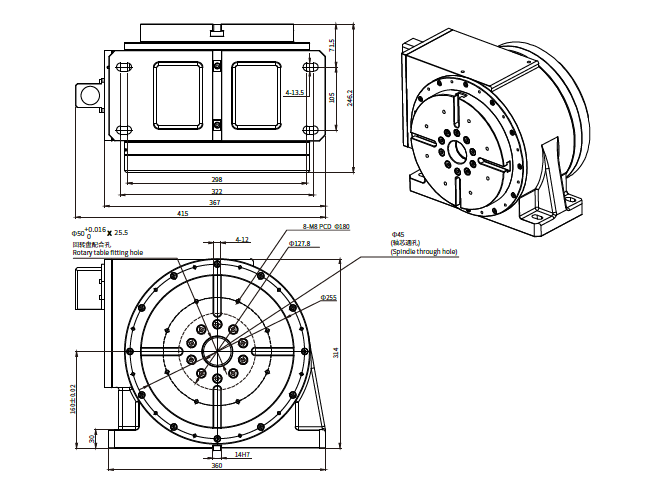

DIMENSIONS
