DZGD-180A36 High-Torque 180 mm Rotary Table

Within the 180 mm range, the DZGD-180A36 is the higher-torque and higher-load option. It delivers 157 Nm rated torque, peaks at 332 Nm and supports 80 kg directly or 120 kg with a tailstock without requiring a larger rotary platform.
Request Now
DZGD-180A36 High-Torque 180 mm Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-180A36
Rated speed200 rpm
Max.speed250 rpm
Rated torque157 Nm
Max.torque332 Nm
Rated current12.7 A
Max.current20 A
Number of motor poles30
Rated voltage220 V
Clamp torque235 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated
positioning accuracy		Grating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder typeOptional Mitsubishi,
Fanuc, Siemens, biss-c
Allowable load80 (Tail seat 120) Kg
Allowable workpiece inertia1.2 kg.m²
Allowable moment load500 Nm

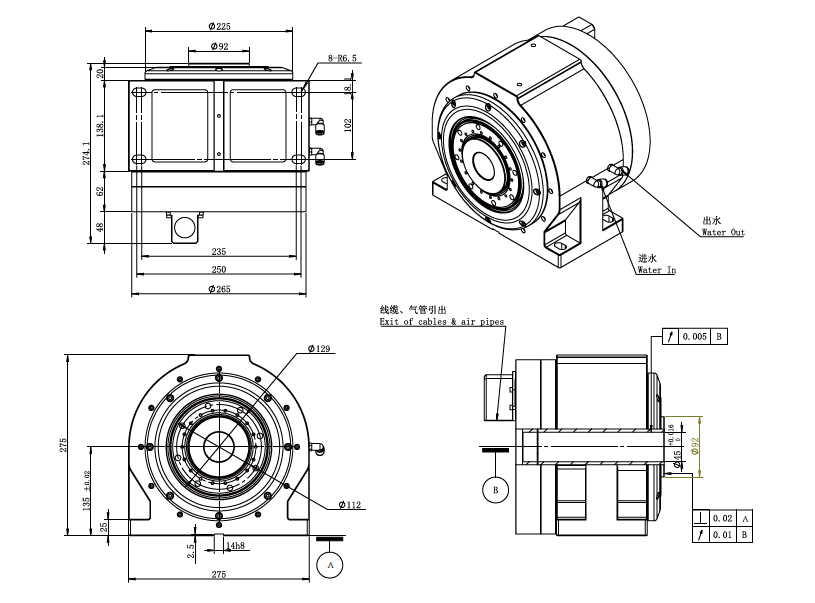

DIMENSIONS
