DZGD-150A 150 mm Direct-Drive Rotary Table

The DZGD-150A addresses smaller machine structures that still require precise closed-loop indexing. It combines 240 rpm speed, ±3 arcsec positioning, ±1 arcsec repeatability, IP66 protection and several CNC encoder choices.
Request Now
DZGD-150A 150 mm Direct-Drive Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-150A
Rated speed240 rpm
Max.speed240 rpm
Rated torque30 Nm
Max.torque75 Nm
Rated current2.8A
Max.current7.0 A
Number of motor poles22
Rated voltage220 V
Clamp torque≥135 Nm
Clamp air pressure0.47~0.55MPa
Positioning accuracy±3sec
Bidirectional repeated positioning accuracy±1sec
Degrees protectionIP66
Encoder typeMITSUBISHI, FANUC, SIEMENS, BiSS-C
Allowable load30 (Tail seat 50) Kg
Noise value≤68dB
Net weight44kg

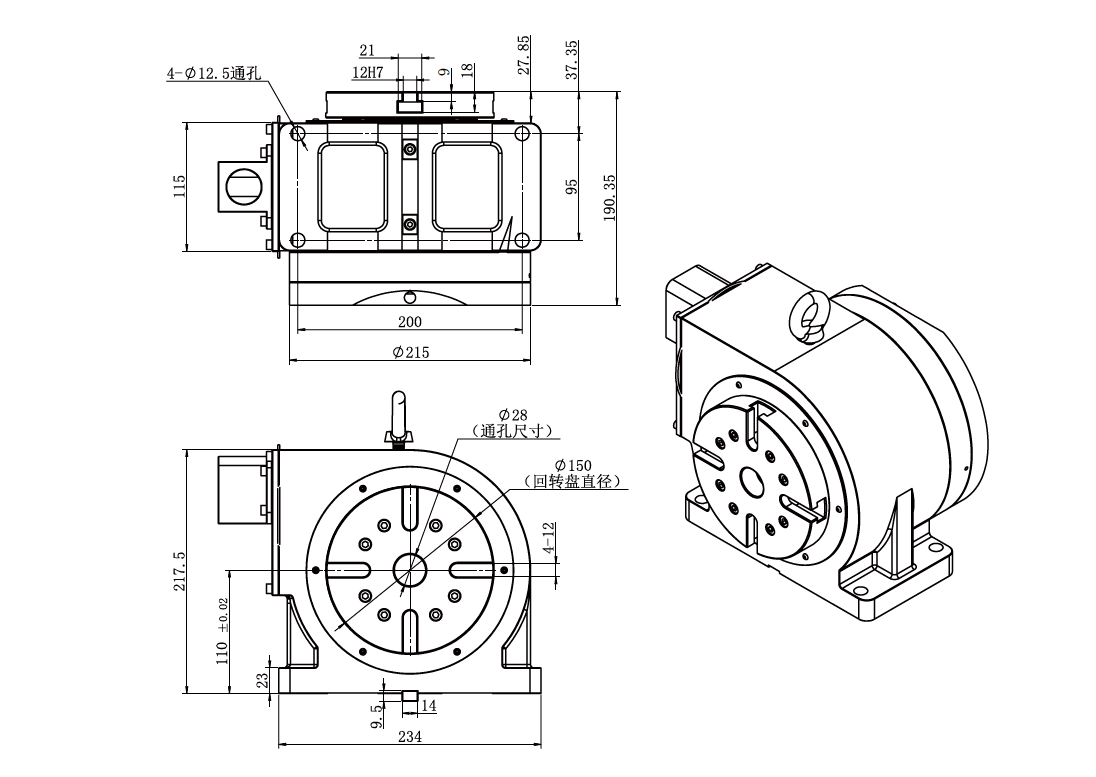

DIMENSIONS
