DZDV-160-200-62-35-A26-A Rotary Table with Tailstock

This DZDV-160 version is organized around tailstock-supported workholding. It carries 30 kg directly or 50 kg with a tailstock, while 240 rpm speed, 26-bit BiSS-C feedback and IP66 protection suit compact CNC indexing applications.
Request Now
DZDV-160-200-62-35-A26-A Rotary Table with Tailstock

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-160-200-62-35-A26-A
Rated speed240 rpm
Max.speed240 rpm
Rated torque30 Nm
Max.torque75Nm
Rated current2.8A
Max.current7.0 A
Number of motor poles22
Rated voltage220 V
Clamp torque≥235 Nm
Clamp air pressure0.47~0.55MPa
Positioning accuracy±3sec
Bidirectional repeated positioning accuracy±1sec
Degrees protectionIP66
Encoder type26 bit (Biss-C Protocol)
Allowable load30 (Tail seat 50) Kg
Allowable workpiece inertia0.6 kg.m²
Allowable moment load500 Nm

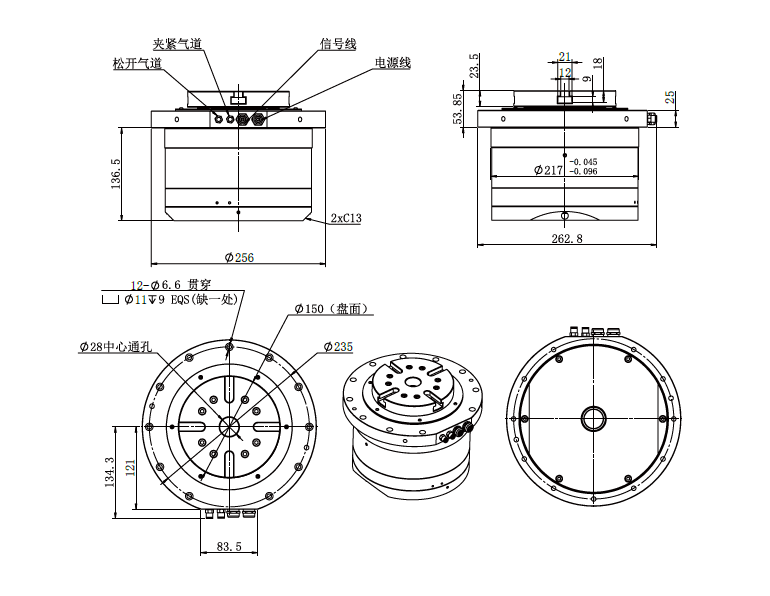

DIMENSIONS
