DZDV-160-200-62-35-A26-A1 Compact Rotary Table

The A1 configuration is designed for compact machine layouts. The rotary unit weighs 40 kg while carrying up to 35 kg, and combines 240 rpm speed, 26-bit BiSS-C feedback, IP66 protection and repeatability specified at ±1 arcsec.
Request Now
DZDV-160-200-62-35-A26-A1 Compact Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-160-200-62-35-A26-A1
Rated speed240 rpm
Max.speed240 rpm
Rated torque30 Nm
Max.torque75Nm
Rated current2.8A
Max.current7.0 A
Number of motor poles22
Rated voltage220 V
Clamp torque≥235 Nm
Clamp air pressure0.47~0.55MPa
Positioning accuracy±3sec
Bidirectional repeated positioning accuracy±1sec
Degrees protectionIP66
Encoder type26 bit (Biss-C Protocol)
Allowable load35Kg
Noise value≤68dB
Net weight40kg

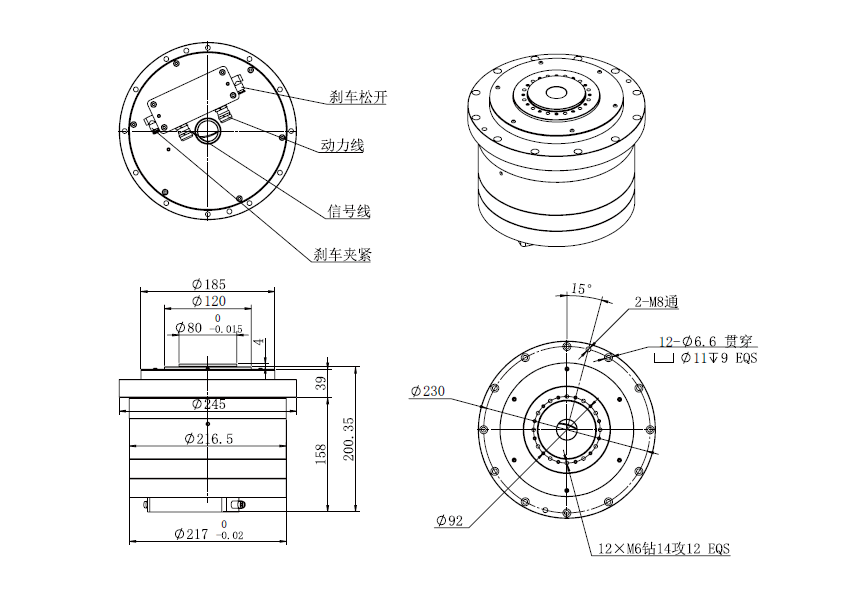

DIMENSIONS
