DZGD-125A8 125 mm Compact Rotary Table

The DZGD-125A8 is the smallest platform in this group, combining a 125 mm table with speeds up to 400 rpm. It carries 25 kg directly or 50 kg with a tailstock, while IP67 protection suits compact CNC indexing environments.
Request Now
DZGD-125A8 125 mm Compact Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-125A8
Rated speed200 rpm
Max.speed400 rpm
Rated torque20 Nm
Max.torque80 Nm
Rated current2.7 A
Max.current10.8 A
Number of motor poles44
Rated voltage220 V
Clamp torque235 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated positioning accuracyGrating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder typeOptional Mitsubishi,
Fanuc, Siemens, biss-c
Allowable load25 (Tail seat 50) Kg
Allowable workpiece inertia0.6 kg.m²
Allowable moment load300 Nm

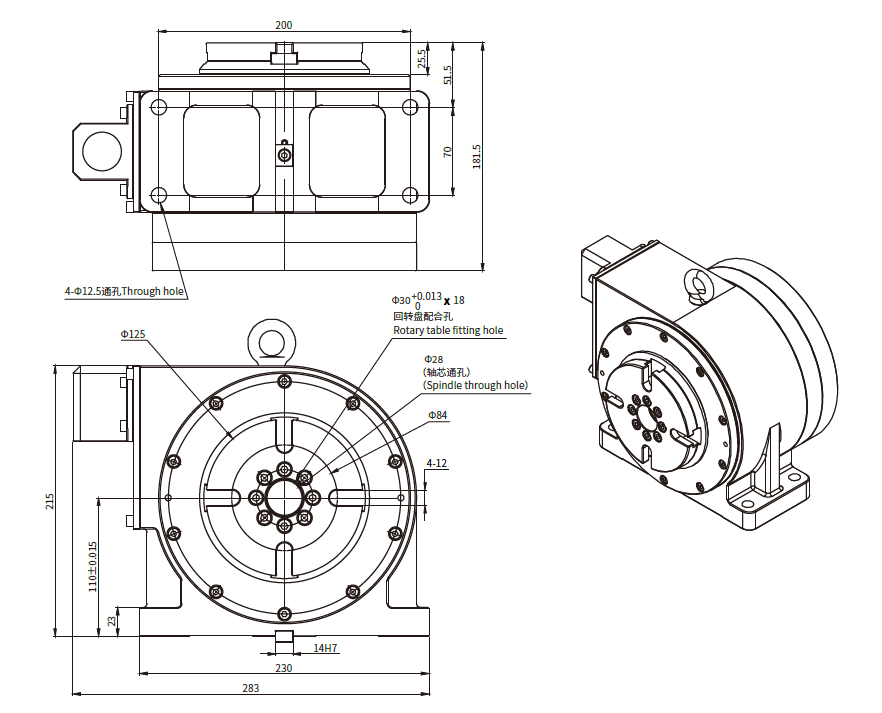

DIMENSIONS
