DZGD-180A13 180 mm Direct-Drive Rotary Table

The DZGD-180A13 provides a flexible 180 mm platform for different CNC control systems. Encoder options cover Mitsubishi, FANUC, Siemens and BiSS-C, while the mechanical design supports 50 kg loads, 250 rpm speed and 276 Nm peak torque.
Request Now
DZGD-180A13 180 mm Direct-Drive Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-180A13
Rated speed200 rpm
Max.speed250 rpm
Rated torque73.7 Nm
Max.torque276 Nm
Rated current4.5 A
Max.current20.7 A
Number of motor poles44
Rated voltage220 V
Clamp torque235 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated
positioning accuracy		Grating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder typeOptional Mitsubishi,
Fanuc, Siemens, biss-c
Allowable load50 (Tail seat 80) Kg
Allowable workpiece inertia0.99 kg.m²
Allowable moment load500 Nm

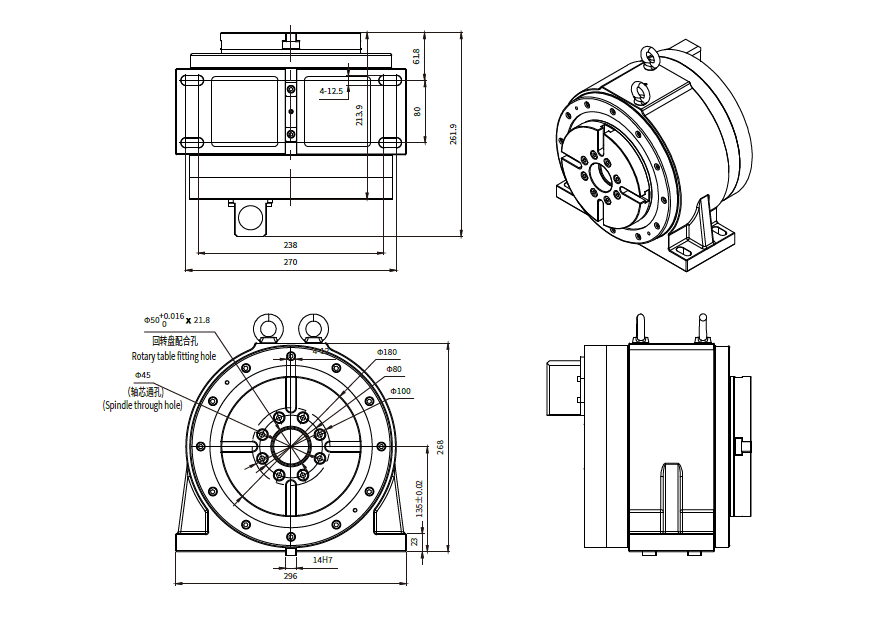

DIMENSIONS
