DZGD-180A34 Rotary Table with BiSS-C Feedback

The DZGD-180A34 is intended for BiSS-C-based control systems requiring a defined 180 mm rotary option. Its 26-bit feedback, 250 rpm maximum speed and 70 kg standard load rating support precise CNC indexing and straightforward control integration.
Request Now
DZGD-180A34 Rotary Table with BiSS-C Feedback

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-180A34
Rated speed200 rpm
Max.speed250 rpm
Rated torque73.7 Nm
Max.torque276 Nm
Rated current4.5 A
Max.current20.7 A
Number of motor poles44
Rated voltage220 V
Clamp torque≥235 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated
positioning accuracy		Grating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder type26 bit (Biss-C Protocol)
Allowable load70 (Tail seat 80) Kg
Allowable workpiece inertia0.99 kg.m²
Allowable moment load500 Nm

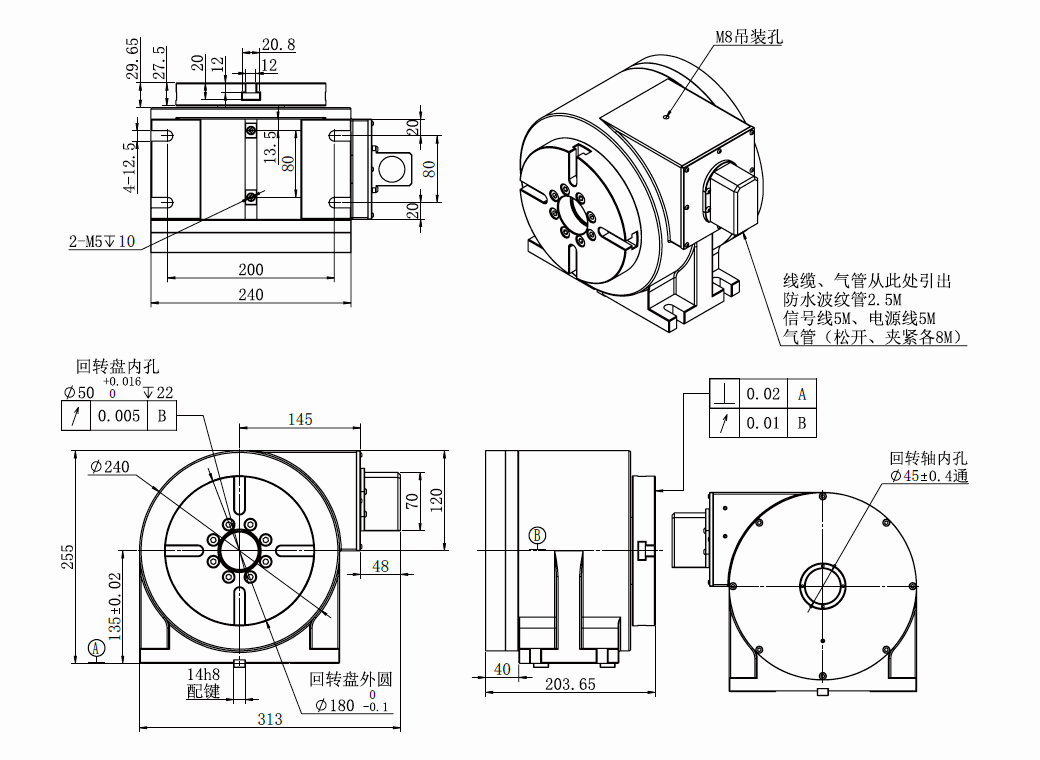

DIMENSIONS
