DZDV-500-100-96-602-A28-A High-Torque Rotary Table

This DZDV-500 variant is the load-focused option in the series. It provides 902 Nm rated torque, 1,505 Nm peak torque and capacity for 600 kg loads, with P4 bearings and water cooling supporting heavy fixtures and demanding cutting conditions.
Request Now
DZDV-500-100-96-602-A28-A High-Torque Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-500-100-96-602-A28-A
Rated speed100 rpm
Max.speed100 rpm
Rated torque902 Nm
Max.torque1505 Nm
Rated current13.5 A
Max.current31 A
Number of motor poles56
Rated voltage380 V
Clamp torque≥1400 Nm
Clamp air pressure0.55 MPa
Positioning accuracy±10sec
Bidirectional repeated positioning accuracy±2sec
Cooling MethodWater Cooling
Encoder type(UTR1-D150i130)
Bearing Accuracy GradeP4
Load capacity≤600kg
Net weight271.5kg

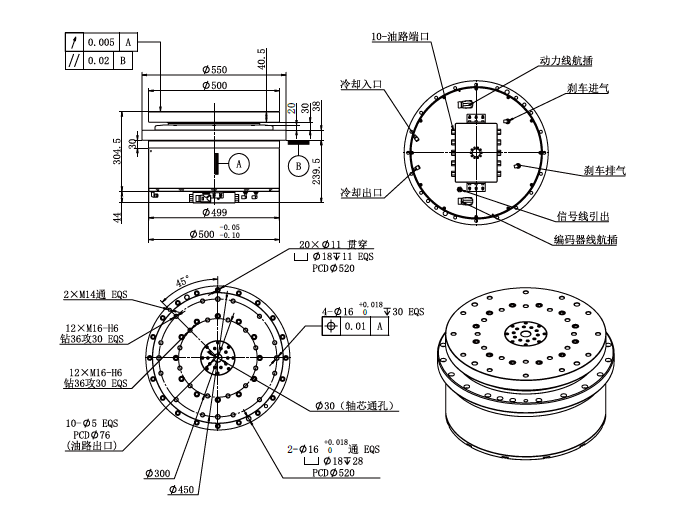

DIMENSIONS
