DZDV-630-400-365-716.5-A28-H-A Heavy-Duty Rotary Table

The DZDV-630 combines rapid rotary motion with substantial load capability. It reaches 1,000 rpm while delivering 1,432.6 Nm peak torque, supporting 500 kg loads and using water cooling to maintain performance during demanding machine cycles.

Request Now
DZDV-630-400-365-716.5-A28-H-A Heavy-Duty Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-630-400-365-716.5-A28-H-A
Rated speed400 rpm
Max.speed1000 rpm
Rated torque716.3 Nm
Max.torque1432.6 Nm
Rated current70 A
Max.current140 A
Number of motor poles78
Rated voltage380 V
Clamp torque≥1400 Nm
Clamp air pressure0.5-0.6 MPa
Positioning accuracy±10sec/±3sec
Positioning Repeatability±1.5sec/±1sec
Cooling MethodWater Cooling
Encoder typeOptional feature
Rotational Accuracy≤0.001mm
Load capacity≤500kg
Net weight623kg

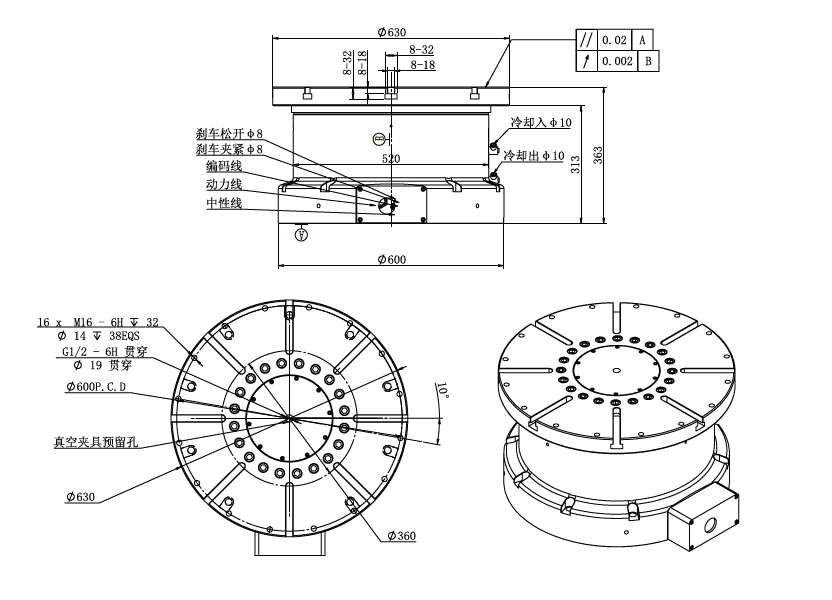

DIMENSIONS
