DZGD-200A10 High-Speed Rotary Indexing Table

The DZGD-200A10 is intended for machines where repositioning time is critical. Its 1,000 rpm speed, 200 Nm clamping torque and capacity for up to 150 kg with a tailstock support fast indexing without moving into a much larger rotary platform.
Request Now
DZGD-200A10 High-Speed Rotary Indexing Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZGD-200A10
Rated speed1,000 rpm
Max.speed1,000 rpm
Rated torque47.8 Nm
Max.torque96.5 Nm
Rated current16 A
Max.current32 A
Number of motor poles30
Rated voltage220 V
Clamp torque≥200 Nm
Clamp air pressure0.5~0.6 MPa
Positioning accuracyGrating ±10sec
Bidirectional repeated positioning accuracyGrating ±2sec
Degrees protectionIP67
Encoder typeOptional Mitsubishi,
Fanuc, Siemens, biss-c
Allowable load100 (Tail seat 150) Kg
Allowable workpiece inertia3 kg.m²

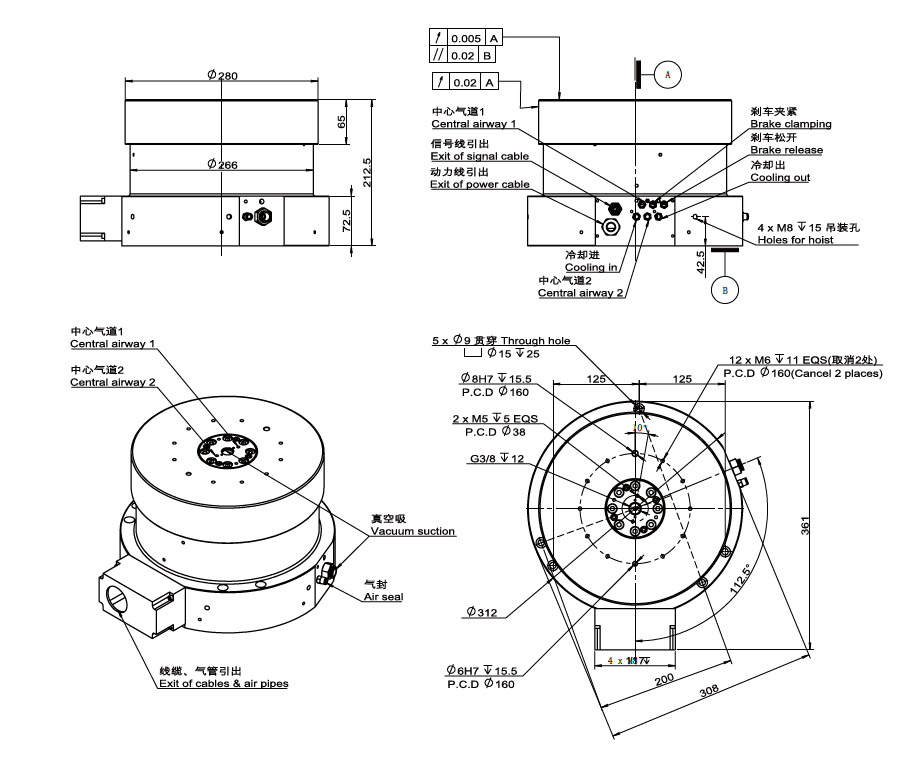

DIMENSIONS
