DZDV-465-75-235-420-A26-A4 Low-Runout Rotary Table

The A4 version focuses on rotary-shaft geometry rather than a broad load claim. End-face runout is limited to 0.005 mm, while defined bore and outer-diameter runout values give machine builders clearer alignment targets during precision axis integration.
Request Now
DZDV-465-75-235-420-A26-A4 Low-Runout Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-465-75-235-420-A26-A4
Rated speed50 rpm
Max.speed100 rpm
Rated torque420 Nm
Max.torque1050 Nm
Rated current5.5 A
Max.current12.7A
Number of motor poles48
Rated voltage380 V
End Face Runout of the Rotary Shaft≤0.005mm
Radial Runout of the Inner Bore of the Rotary Shaft≤0.01mm
Radial Runout of the Outer Circle of the Rotary Shaft≤0.02mm
Brake Air Pressure0.55~0.65MPa
Cooling MethodWater Cooling
Inflation Brake Clamping Torque≥1400Nm
Encoder type27 bit (Siemens Protocol)
Load capacity≤500 Kg
Net weight234kg

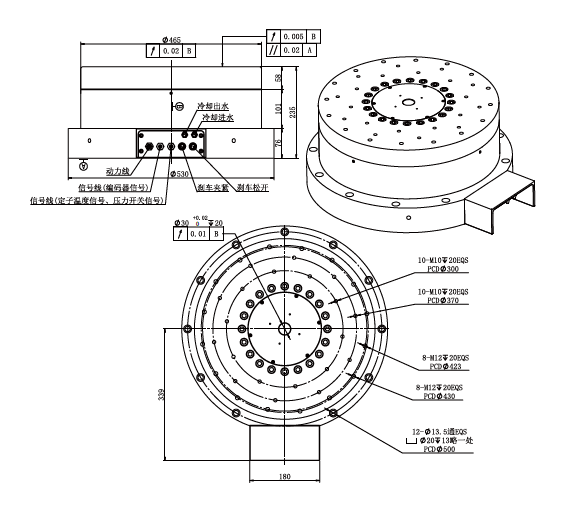

DIMENSIONS
