DZDV-500-700-112.5-400-A26-A High-Speed Rotary Table

Built to reduce rotary and indexing time, this DZDV-500 version reaches 1,400 rpm while retaining 800 Nm peak torque and a 200 kg load rating. Water cooling and 26-bit BiSS-C feedback support controlled operation at higher rotational speeds.

Request Now
DZDV-500-700-112.5-400-A26-A High-Speed Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-500-700-112.5-400-A26-A
Rated speed700 rpm
Max.speed1400 rpm
Rated torque400 Nm
Max.torque800 Nm
Rated current55 A
Max.current110 A
Number of motor poles78
Rated voltage380 V
End Face Runout of the Rotary Table≤0.02mm
Radial Runout of the Rotary Table≤0.03mm
Positioning Accuracy±10"
Brake Air Pressure0.47-0.55MPa
Cooling MethodWater Cooling
Inflation Brake Clamping Torque≥1400Nm
Encoder type26bit (Biss-C Protocol)
Load capacity≤200 Kg
Net weight350kg

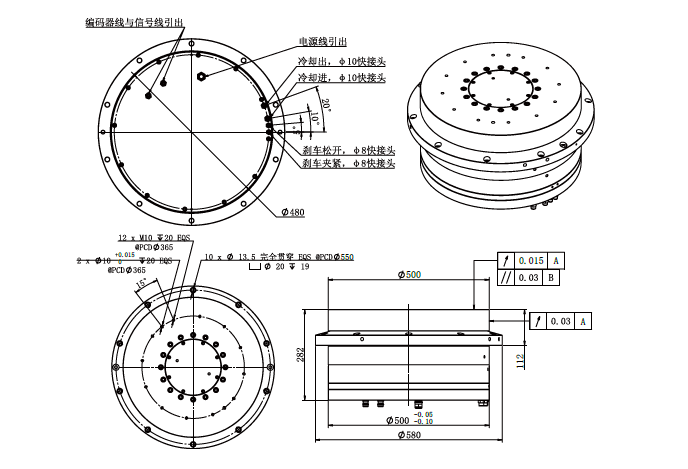

DIMENSIONS
