DZDV-465-75-250-420-A26-A Siemens-Compatible Rotary Table

Control-system integration defines this DZDV-465 model. Siemens 27-bit feedback is paired with 420 Nm rated torque, 1,050 Nm peak torque, a 500 kg load rating and strong clamping capacity for machine tools built around Siemens control architecture.
Request Now
DZDV-465-75-250-420-A26-A Siemens-Compatible Rotary Table

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

DZDV-465-75-250-420-A26-A
Rated speed50 rpm
Max.speed100 rpm
Rated torque420 Nm
Max.torque1050 Nm
Rated current5.5 A
Max.current12.7A
Number of motor poles48
Rated voltage220 V
Clamp torque≥1400 Nm
Clamp air pressure0.55~0.65 MPa
Positioning accuracyGrating ±10sec
Time grating ±3sec
Bidirectional repeated
positioning accuracy		Grating ±2sec
Time grating ±1sec
Degrees protectionIP67
Encoder typeSiemens (27bit)
Allowable load≤500 kg
Allowable workpiece inertia45 kg.m²

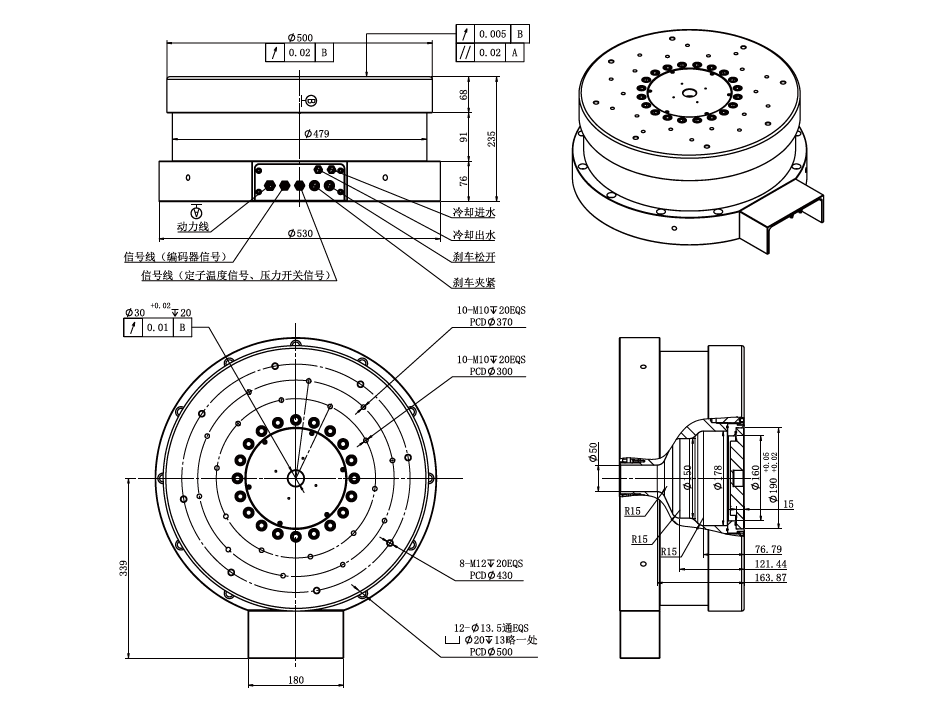

DIMENSIONS
