Explore Our Linear Motor for CNC Range

FEATURES

Stable High-Speed Motion

Ultra-low thrust fluctuation ensures smooth and precise movement at high speed, reducing vibration and improving machining surface quality.

Advanced Thermal Stability

Innovative water cooling design minimizes heat accumulation and thermal deformation, maintaining consistent accuracy during long-term operation.

Micron-Level Positioning Accuracy

High-precision motion control delivers exceptional positioning accuracy and repeatability for demanding applications such as grinding and precision machining.

Reliable Industrial Performance

IP65+ protection and 30,000+ units deployed worldwide ensure stable operation in demanding industrial environments.

Seamless System Integration

Compatible with major CNC systems including Siemens, FANUC, Rexroth, and Syntec, enabling faster machine integration and commissioning.

Customized Motion Solutions

Flexible design and engineering support provide optimized linear motor solutions based on different machine structures and application requirements.

APPLICATION

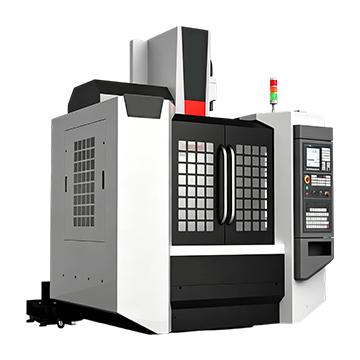

Machine tool

Machine tool

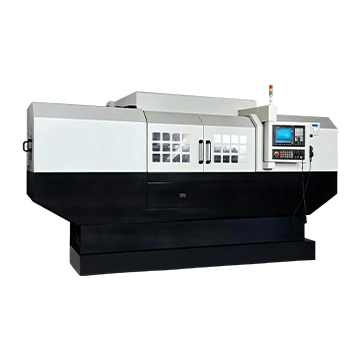

Grinding Machine

Grinding Machine

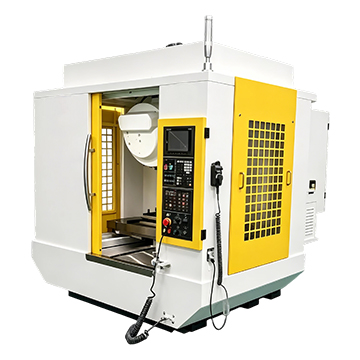

Drilling and Tapping Machine

Drilling and Tapping Machine

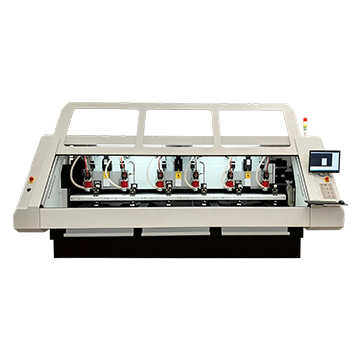

PCB Processing Equipment

PCB Processing Equipment

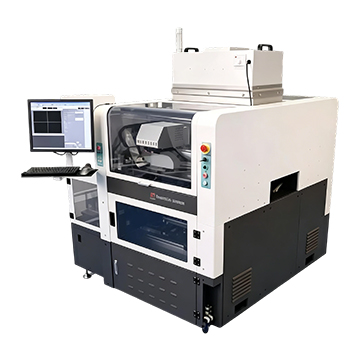

Semiconductor Inspection Equipment

Semiconductor Inspection Equipment

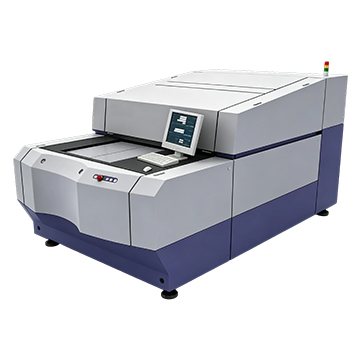

Automatic Vision Measuring Instrument

Automatic Vision Measuring Instrument

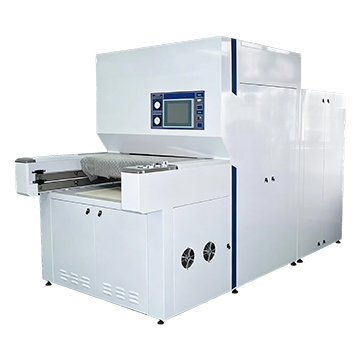

PCB Exposure Machine

PCB Exposure Machine

APPLICATION CASE

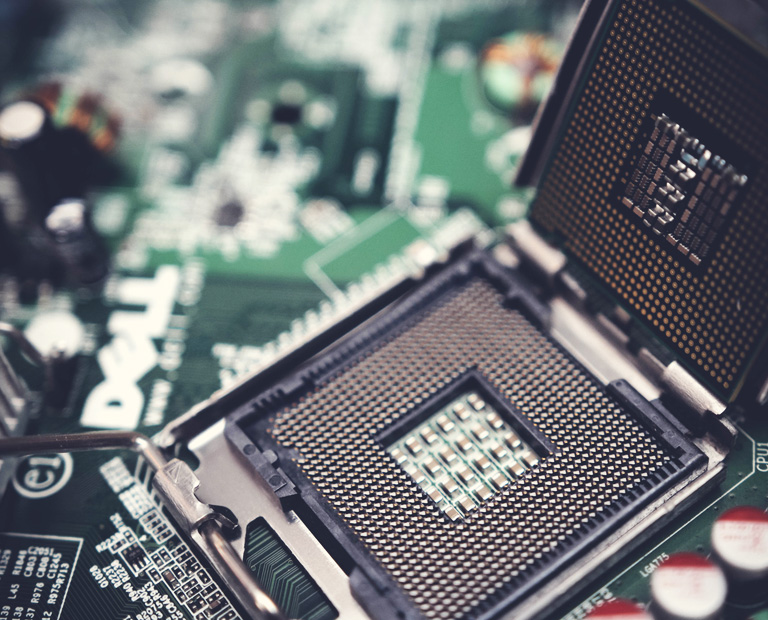

PCB Drilling Machine

A PCB drilling machine requires high-speed drilling, precise positioning, and excellent repeatability to ensure stable hole-position CPK.

To upgrade its 6-axis system, the customer needed higher load capacity, 1G acceleration, 0.03 mm positioning accuracy, and 0.01 mm repeatability.

We delivered a linear-motor solution to meet these demands, using our DLMF-0403W motor on the X-axis and the DLMF-0404W on the Y-axis.

Related Products

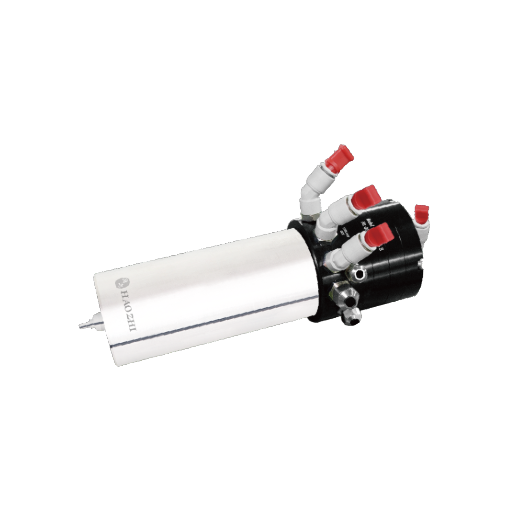

DQF-250B.S 61.92 mm PCB Drilling Spindle
DQF-250B.S 61.92 mm PCB Drilling Spindle

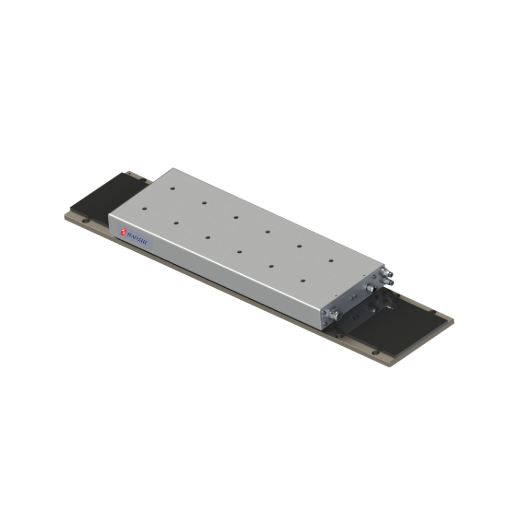

DLMF-04W High-Thrust Linear Motors
DLMF-04W High-Thrust Linear Motors
PCB Drilling Machine

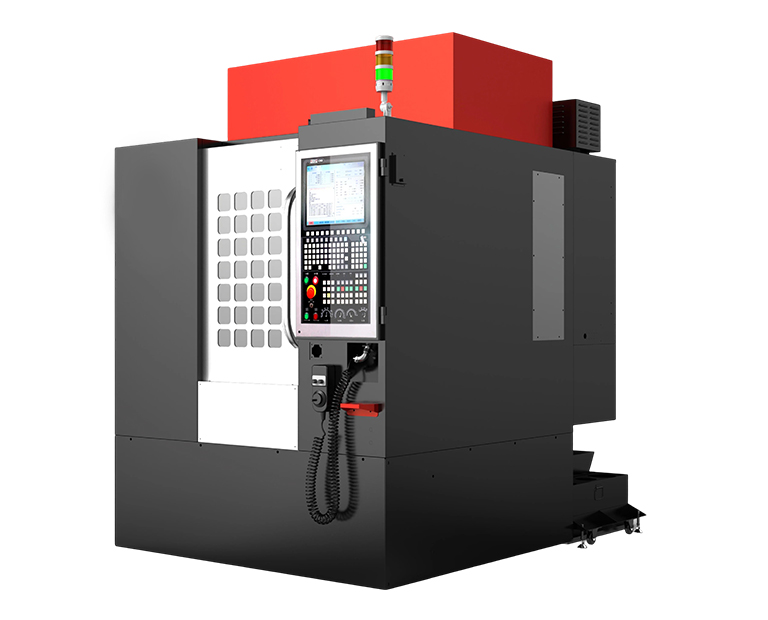

Graphite Machining Center

A graphite machining center is used for producing high-precision graphite molds, which are essential for increasingly demanding 3C products. As mold accuracy requirements rise, the machine’s efficiency, precision, and dust-proof protection become more critical.

The customer aimed to upgrade performance, requesting:

Rapid traverse increased from 15 m/min to over 48 m/min

Repeatability of 0.002 mm

Improved surface finish on graphite parts

We delivered a linear-motor feeding system that boosts rapid traverse to 60 m/min. The X and Y axes use our DLMF-0301W permanent-magnet linear motors, while the Z axis is equipped with the DLM-0203W model to achieve high-speed, high-precision motion.

Related Products

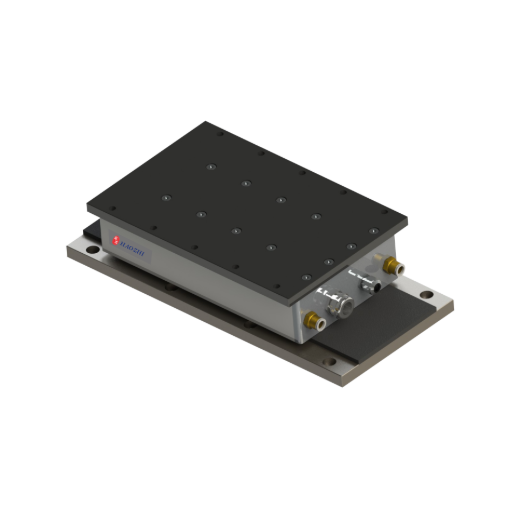

DLMF-03W Flat Linear Motors for CNC Feed Axes
DLMF-03W Flat Linear Motors for CNC Feed Axes
Graphite Machining Center

Discuss Your CNC Spindle or Motion Component Project

Share your machine type, machining process, performance targets or existing component specifications with Haozhi. Our technical team can support spindle selection, application matching, custom development and motion-component integration for new equipment and upgrade projects.
