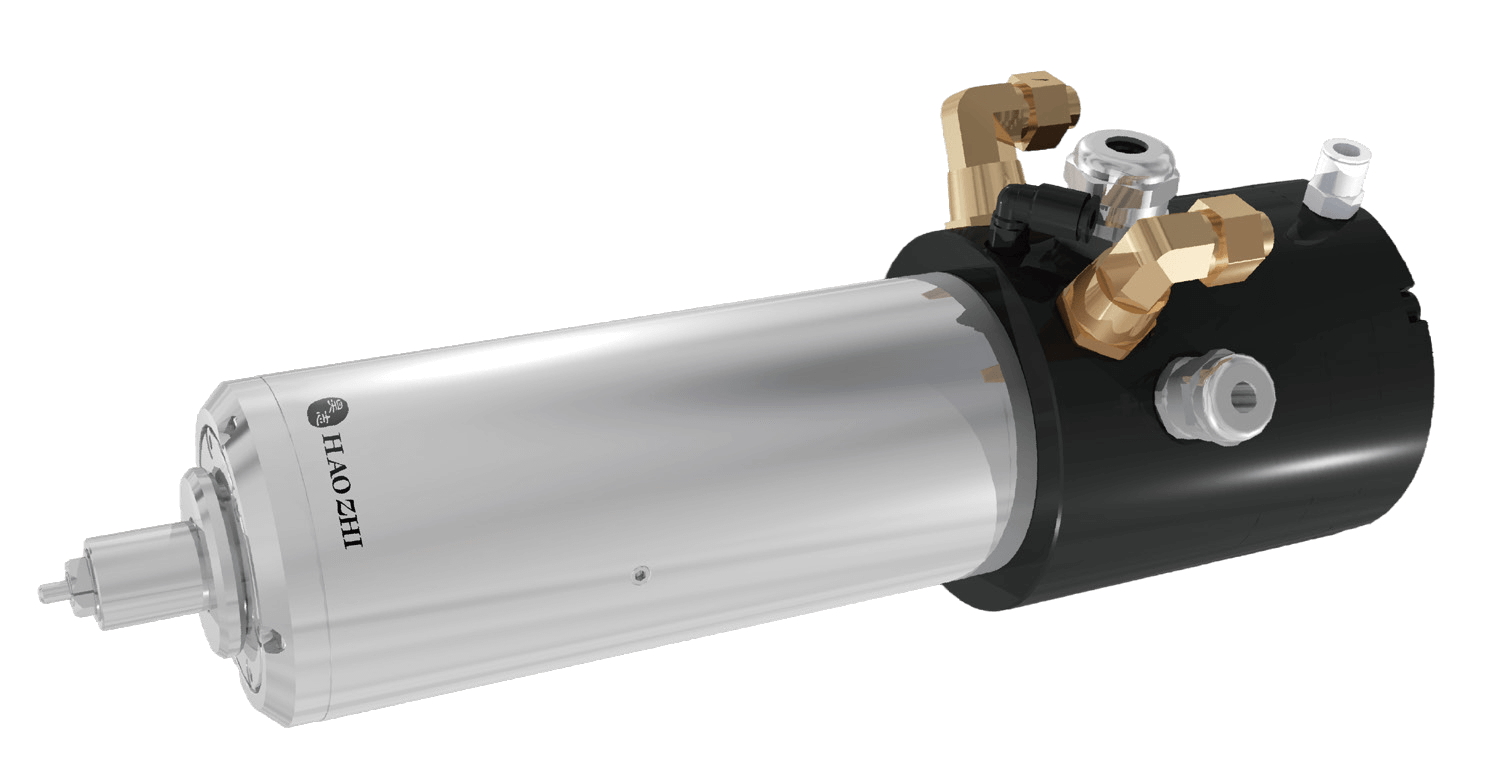

DGZ-60C3.S B065 PCB Routing Spindle

The DGZ-60C3.S is configured for PCB routing with a B065 draw-in collet and ceramic ball bearings. Its 61.92 mm body delivers 0.9 kW continuously or 1.2 kW intermittently at speeds up to 60,000 rpm.
Diameter Φ61.92mm
Maximum speed 60000rpm
Torque(S1) 0.15Nm
Torque(S6-40%) 0.19Nm
Power(S1) 0.9kW
Power(S6-20%) 1.2kW
Request Now
DGZ-60C3.S B065 PCB Routing Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle modelDGZ-60C3.S
DiameterΦ61.92mm
The highest speed60,000rpm
Tool interfaceB065 draw-in collet
Bearing typeCeramic ball bearing
Max. Frequency1,000Hz
Motor systemAsynchronous motor
The rated voltage200V
Power output S1 100%0.9kW
Power output S6 40%1.2kW
Output torque S1 100%0.15N.m
Output torque S6 40%0.19N.m
Rated current S1 100%3.5A
Rated current S6 40%4.2A
Air seal gas flow rate30-50L/min (Air pressure 0.15MPa)
Cooling systemWater cooling
The cooling flow rate≥1.6L/min
Motor temperature sensor typePTC
Tool changeCylinder
Tool change air pressure0.56-0.60MPa
Vibration velocity0.8mm/s
Speed sensorYes
Weight4.24±0.5kg
