DQF-250B.S 61.95 mm PCB Drilling Spindle

This DQF-250B.S variant uses a 61.95 mm housing for machines built around that installation diameter. Its dual-winding design combines a 120,000 rpm low-speed range with 250,000 rpm high-speed drilling capability.
Diameter Φ61.95mm
Request Now
DQF-250B.S 61.95 mm PCB Drilling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle ModelDQF-250B.S
Maximum speed (rpm)low-speed winding 120000
High-speed winding 250000
Maximum voltage (V)220
Rated power (kW)Low winding: 0.98
High winding: 1.125
Rated torque (N·m)Low winding: 0.16
High winding: 0.09
Maximum frequency (Hz)Low winding: 2000
High winding: 4167
Rated current (A)Low winding: 4.48
High winding: 3.3
Chuck torque≥165 N·cm
Vibration values (mm/s)≤0.8
Cooling form and mediumInternal cooling, Water
Cooling system coolant flowWater: ≥2 L/min (Water pressure 0.2MPa)
Cylinder working pressure (MPa)0.56~0.60
Bearing working pressure (MPa)0.6~0.65
Static runout (μm)≤2.0
Dynamic runout (μm)≤6.0
Air system air flow (L/min)40~48
Weight (kg)3.4

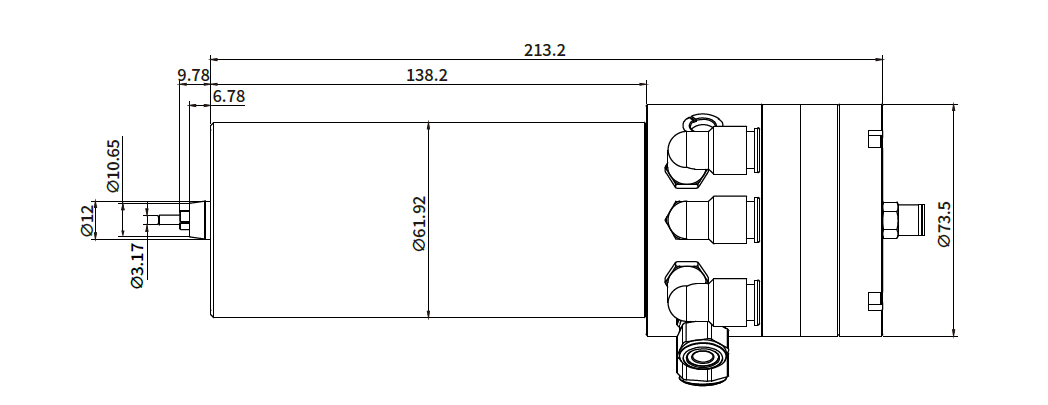

DIMENSIONS
