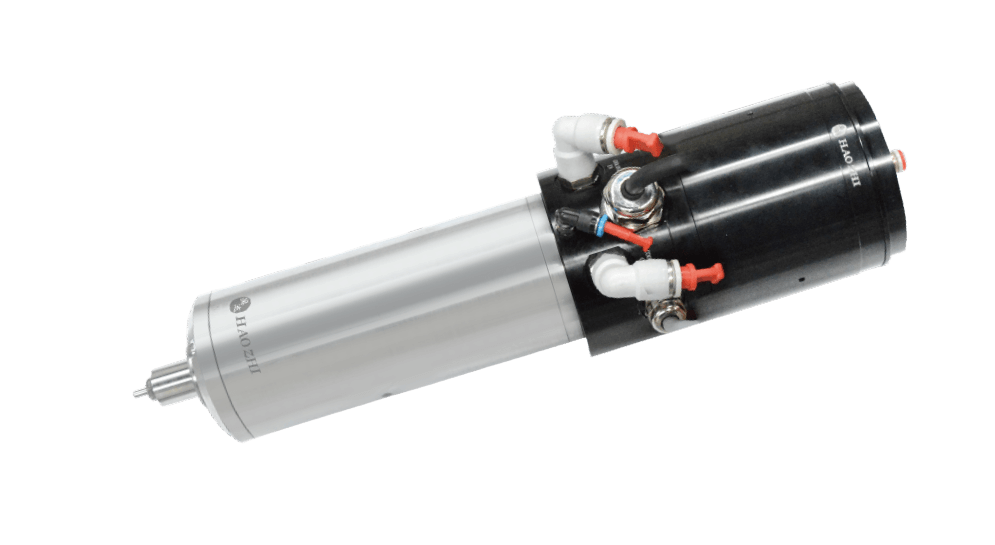

DGZ-60C Upgraded 1.5 kW PCB Routing Spindle

This upgraded DGZ-60C increases continuous output to 1.5 kW and intermittent output to 1.8 kW. A B003 draw-in collet, 0.24 Nm rated torque and water-cooled ceramic-bearing structure distinguish it from the lower-power DGZ-60C3.S.
Diameter Φ61.92mm
Maximum speed 60000rpm
Torque(S1) 0.24Nm
Torque(S6-40%) 0.29Nm
Power(S1) 1.5kW
Power(S6-20%) 1.8kW
Request Now
DGZ-60C Upgraded 1.5 kW PCB Routing Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle modelDGZ-60C Upgrade
DiameterΦ61.92mm
The highest speed60,000rpm
Tool interfaceB003 draw-in collet
Bearing typeCeramic ball bearing
Max. Frequency1,000Hz
Motor systemAsynchronous motor
The rated voltage220V
Power output S1 100%1.5kW
Power output S6 40%1.8kW
Output torque S1 100%0.24N.m
Output torque S6 40%0.29N.m
Rated current S1 100%4.8A
Rated current S6 40%5.8A
Air seal gas flow rate30-50L/min (Air pressure 0.15MPa)
Cooling systemWater cooling
The cooling flow rate≥1.6L/min
Motor temperature sensor typePTC
Tool changeCylinder
Tool change air pressure0.56-0.60MPa
Vibration velocity0.8mm/s
Weight4.2±0.5kg

DIMENSIONS
