DQFX-06280 1.5 kW PCB Spindle

The DQFX-06280 provides stronger cutting output than the ultra-high-speed models in this PCB spindle group. Its 1.5 kW power, 80,000 rpm speed and 61.92 mm body support stable machining with water-cooled thermal control.
Diameter Φ61.92mm
Maximum speed 80000rpm
Torque(S6-40%) 0.0255Nm
Power(S6-20%) 1.5kW
Request Now
DQFX-06280 1.5 kW PCB Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle ModelDQFX-06280/1.2-DPWS
Maximum speed (rpm)80000
Maximum voltage (V)220
Rated power (kW)1.5
Rated torque (N·m)0.0255
Maximum frequency (Hz)1333
Rated current (A)5
Chuck torque≥ 254 N·m (Hilt 3.175)
Vibration values (mm/s)≤ 0.8
Cooling form and mediumInternal cooling, water
Cooling system coolant flowWater: ≥ 1.5 L/min (Water pressure 0.2 MPa)
Cylinder working pressure (MPa)0.56~0.60
Bearing working pressure (MPa)0.6~0.65
Static runout (µm)≤ 2.0
Dynamic runout (µm)≤ 6.0
Air system air flow86~92 (@80000rpm)
Weight (kg)4.8

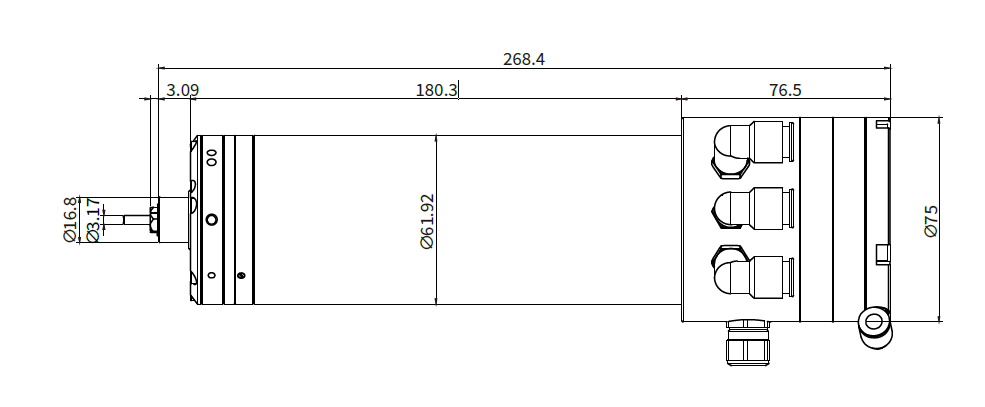

DIMENSIONS
