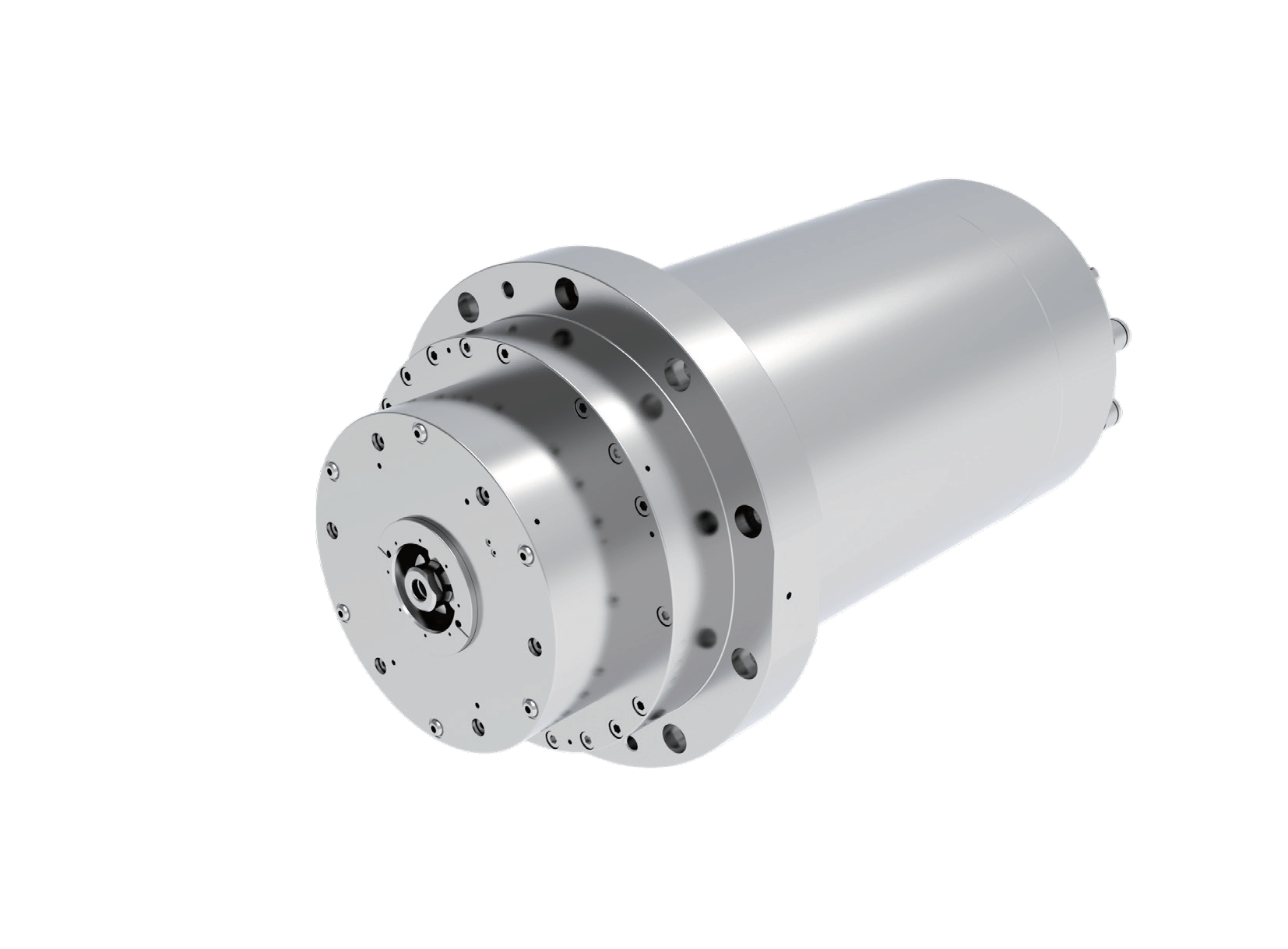

DGZYX-24015 High-Power HSK-A63 Milling Spindle

The DGZYX-24015 concentrates 55 kW continuous power and 180.5 Nm torque behind an HSK-A63 interface. It is intended for machining centers that need stronger material removal without giving up the 15,000 rpm range required for finishing.
Diameter Φ240mm
Maximum speed 15000rpm
Torque(S1) 180.5Nm
Torque(S6-40%) 270.8Nm
Power(S1) 55kW
Power(S6-20%) 82.5kW
Request Now
DGZYX-24015 High-Power HSK-A63 Milling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDGZYX-24015/55-HSKA63
DiameterΦ240 mm
Tool interfaceHSK-A63
Bearings lubricationGrease
Motor systemSynchronous
Highest speed15,000 rpm
Voltage380 V
Rated power (S1-100%)55 kW
Rated torque (S1-100%)180.5 N·m
Rated power (S6-40%)82.5 kW
Rated torque (S6-40%)270.8 N·m
Spindle coolantWater (recommended)
Tool outer coolant (Ring spray)Water / Oil / Oil mist / Air
Tool inner coolant (Center cooling)Water / Oil / Oil mist / Dry air
Tool changeHydraulic
Motor temperature sensorKTY84-130, PTC
Bearing temperature sensorPT100
EncoderSin/cos, 1Vpp
Tool clamping monitor sensorAnalog distance sensor
Shaft clamping monitor sensor24V, PNP, Normally Open
Vibration sensorOptional
Displacement sensorOptional
TurningOptional
Weight160 ± 5 kg

DIMENSIONS
