DGZYX-18018/45 High-Power HSK-A63 Spindle

The DGZYX-18018/45 combines a larger 180 mm structure with 45 kW rated power and an 18,000 rpm ceiling. Its role is not limited to finishing: the spindle is intended to provide the power reserve needed for heavier cuts while retaining productive high-speed milling.
Diameter Φ180mm
Maximum speed 18000rpm
Torque(S1) 100Nm
Torque(S6-40%) 150Nm
Power(S1) 45kW
Power(S6-20%) 67.5kW
Request Now
DGZYX-18018/45 High-Power HSK-A63 Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: *DGZYX-18018/45--HSK
DiameterΦ180mm
Tool InterfaceHSK-A63
Bearings LubricationGrease
Motor systemSingles winding Synchronous
The highest speed18,000rpm
Voltage380V
Rated power (S1-100%)45kW
Rated torque (S1-100%)100N.m
Rated power (S6-40%)67.5kW
Rated torque (S6-40%)150N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Clamping Power14000-24000N

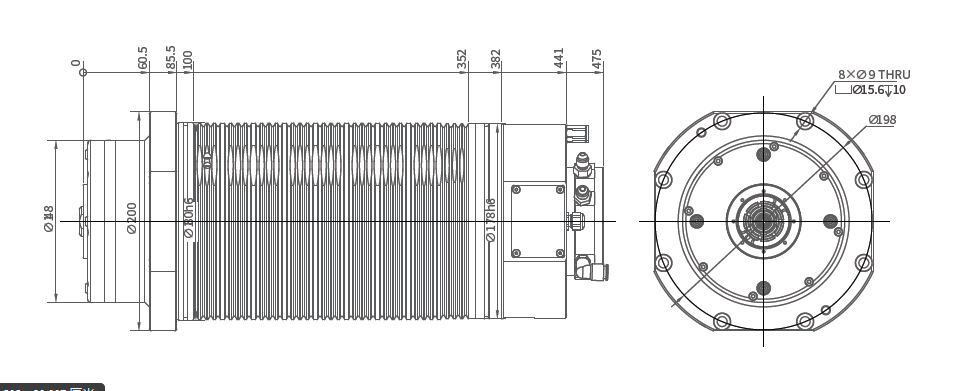

DIMENSIONS
