DGZYX-15020/40 Compact High-Power Spindle

The defining advantage of the DGZYX-15020/40 is power density. It places 40 kW and a 20,000 rpm range within a 150 mm HSK-A63 package, allowing machine builders to increase cutting capability without adopting the larger 180 or 190 mm spindle envelope.
Diameter Φ150mm
Maximum speed 20000rpm
Torque(S1) 50.09Nm
Torque(S6-40%) 76.04Nm
Power(S1) 40kW
Power(S6-20%) 60kW
Request Now
DGZYX-15020/40 Compact High-Power Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: *DGZYX-15020/40-HSK
DiameterΦ150mm
Tool InterfaceHSK-A63
Bearings LubricationGrease
Motor systemSynchronous
The highest speed20,000rpm
Voltage380V
Rated power (S1-100%)40kW
Rated torque (S1-100%)50.9N.m
Rated power (S6-40%)60kW
Rated torque (S6-40%)76.4N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Clamping Power18000-24000N

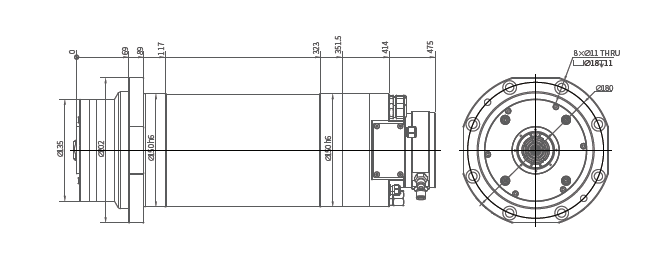

DIMENSIONS
