DGZX-15024/20 High-Speed HSK-A63 Spindle

The move from 20,000 to 24,000 rpm makes this model better suited to finishing operations and smaller cutting tools. Its HSK-A63 interface and 150 mm structure support high-speed mold, automotive and aerospace component machining without moving to a smaller spindle body.
Diameter Φ150mm
Maximum speed 24000rpm
Torque(S1) 30.7Nm
Torque(S6-40%) 46Nm
Power(S1) 20kW
Power(S6-20%) 30kW
Request Now
DGZX-15024/20 High-Speed HSK-A63 Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: DGZX-15024/20-HSK
DiameterΦ150mm
Tool interfaceHSK-A63
Bearings LubricationGrease / Oil-air
Motor systemAsynchronous
The highest speed24,000rpm
Voltage380V/175V
Rated power (S1-100%)20kW
Rated torque (S1-100%)30.7N.m
Rated power (S6-40%)30kW
Rated torque (S6-40%)46N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist/Dry air
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
Bearing temperature sensorOptional
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Vibration sensorNot supported
Displacement sensorOptional
Weight60±2kg

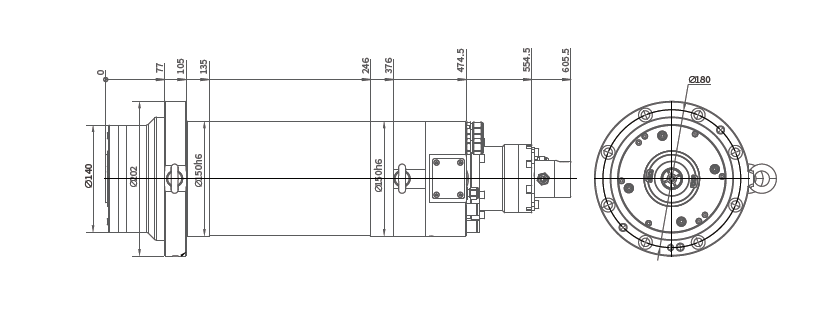

DIMENSIONS
