DGZX-15018/20 Compact Dual-Winding Spindle

This model places dual-winding capability inside a 150 mm BBT40 platform. Machine builders can use the lower-speed winding for torque-demanding work and the higher-speed range for efficient milling, without adopting the larger footprint of the 190 mm version.
Diameter Φ150mm
Maximum speed 18000rpm
Torque(S1) 28Nm
Torque(S6-40%) 34Nm
Power(S1) 20kW
Power(S6-20%) 24kW
Request Now
DGZX-15018/20 Compact Dual-Winding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: DGZX-15018/20-BBT

Low windingHigh winding
DiameterΦ150mm
Tool interfaceBBT40
Bearings LubricationGrease
Motor systemAsynchronous
The highest speed9,000rpm18,000rpm
Voltage175V175V
Rated power (S1-100%)20kW20kW
Rated torque (S1-100%)53N.m28N.m
Rated power (S6-40%)24kW24kW
Rated torque (S6-40%)64N.m34N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Clamping Power7000-9000N

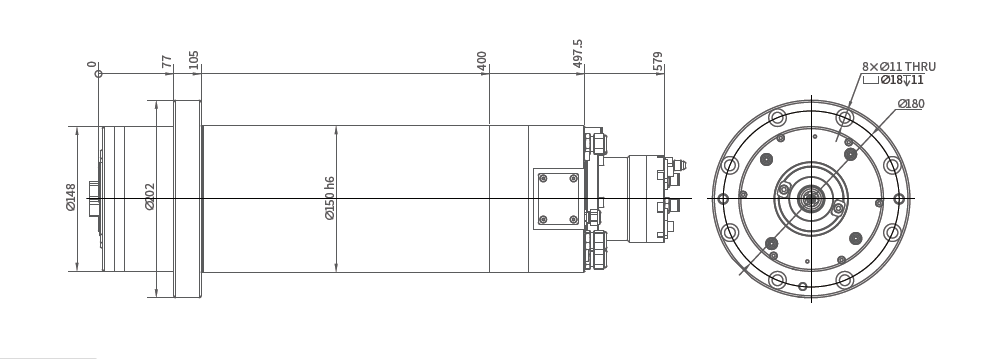

DIMENSIONS
