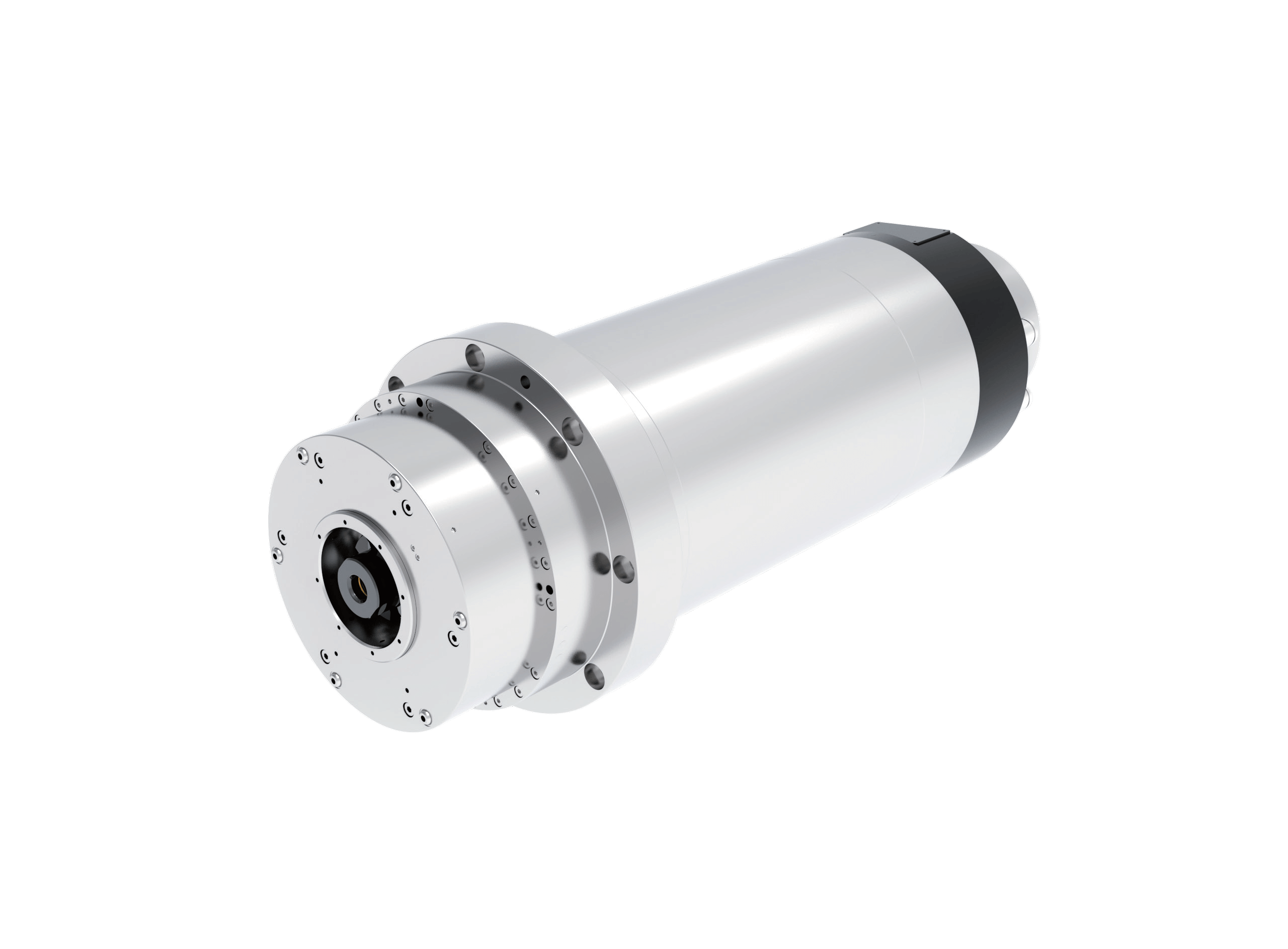

DGZYX-21012/45 HSK-T100 Mill-Turn Spindle

The HSK-T100 interface positions this 210 mm spindle for larger mill-turn platforms rather than conventional milling centers alone. Its 12,000 rpm range supports rigid milling and turning-capable machine layouts handling larger tools, fixtures and workpieces.
Diameter Φ210mm
Maximum speed 12000rpm
Torque(S1) 120Nm
Torque(S6-40%) 180Nm
Power(S1) 45kW
Power(S6-20%) 83kW
Request Now
DGZYX-21012/45 HSK-T100 Mill-Turn Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDGZYX-21012/45-HSKT100
DiameterΦ210 mm
Tool interfaceHSK-T100
Bearings lubricationGrease
Motor systemSynchronous
Highest speed12,000 rpm
Voltage380 V
Rated power (S1-100%)45 kW
Rated torque (S1-100%)120 N·m
Rated power (S6-40%)83 kW
Rated torque (S6-40%)180 N·m
Spindle coolantWater (recommended)
Tool outer coolant (Ring spray)Water / Oil / Oil mist / Air
Tool inner coolant (Center cooling)Water / Oil / Oil mist
Tool changeHydraulic
Motor temperature sensorKTY84-130, PTC
Bearing temperature sensorPT100
EncoderSin/cos, 1Vpp
Tool clamping monitor sensorOptional
Shaft clamping monitor sensor24V, PNP, Normally Open
Vibration sensorOptional
Displacement sensorOptional
TurningOptional
Weight143 ± 5 kg

DIMENSIONS
