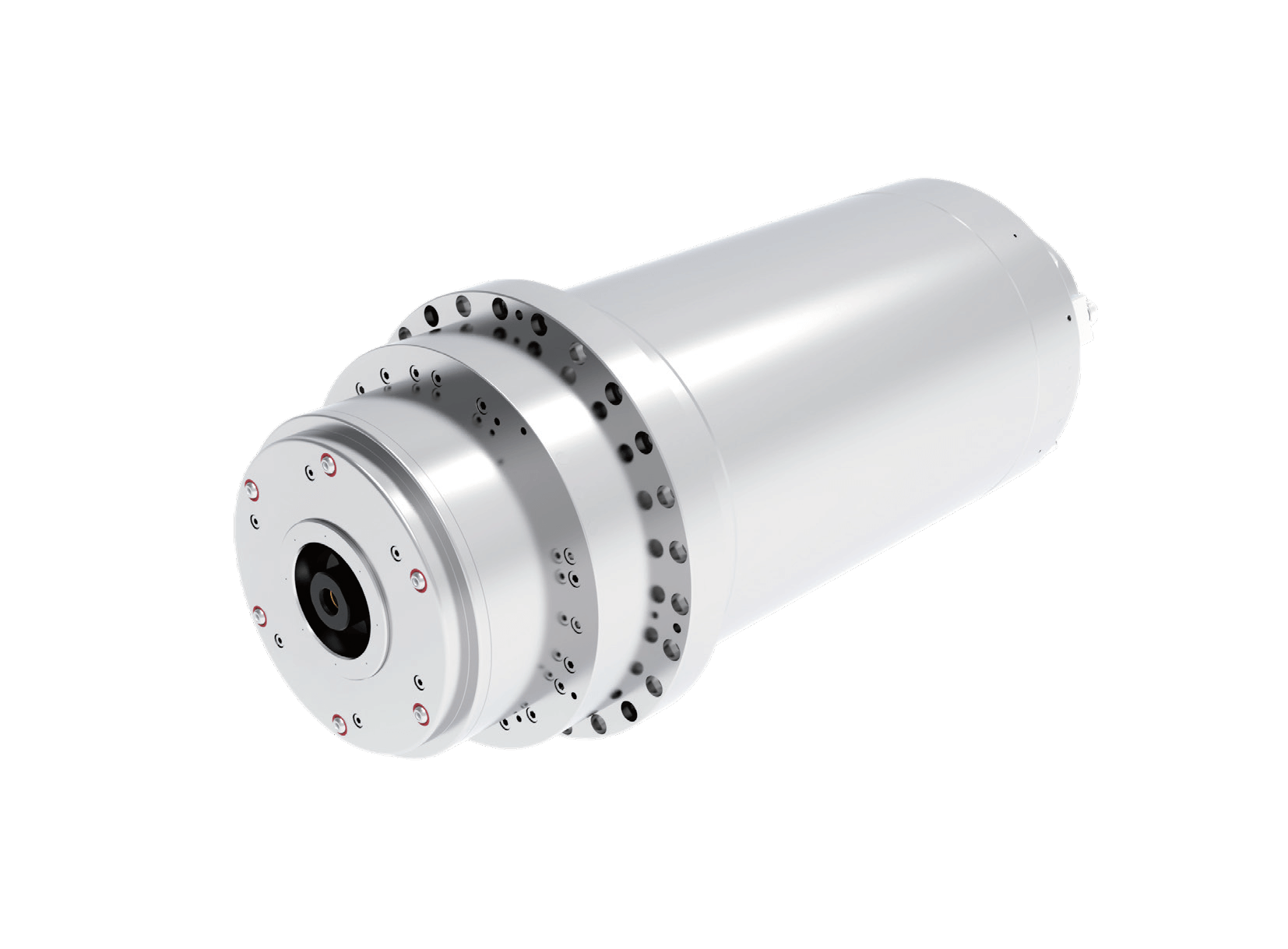

DGZX-28010 High-Torque BBT50 and HSK-A100 Spindle

The DGZX-28010 is selected for torque rather than extreme rotational speed. Its double-winding motor reaches 630 Nm intermittently, while BBT50 and HSK-A100 interface options support large tools, rigid setups and heavy material-removal operations.
Diameter Φ280mm
Maximum speed 10000rpm
Torque(S1) 420Nm
Torque(S6-40%) 630Nm
Power(S1) 33kW
Power(S6-20%) 49.5kW
Request Now
DGZX-28010 High-Torque BBT50 and HSK-A100 Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDGZX-28010/33-BBT
DGZX-28010/33-HSK
Diameterφ280mm
Tool interfaceBBT50 / HSK-A100
Bearings LubricationGrease
Motor systemDouble winding asynchronous
The highest speed10,000rpm
Voltage380V/200V
Rated power (S1-100%)Y: 33kW / △: 33kW
Rated torque (S1-100%)Y: 420N.m / △: 107N.m
Rated power (S6-40%)Y: 49.5kW / △: 49.5kW
Rated torque (S6-40%)Y: 630N.m / △: 160.5N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
Bearing temperature sensorPT100
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V, PNP, Normally Open
Vibration sensorOptional
Displacement sensorOptional
Weight288±10kg
