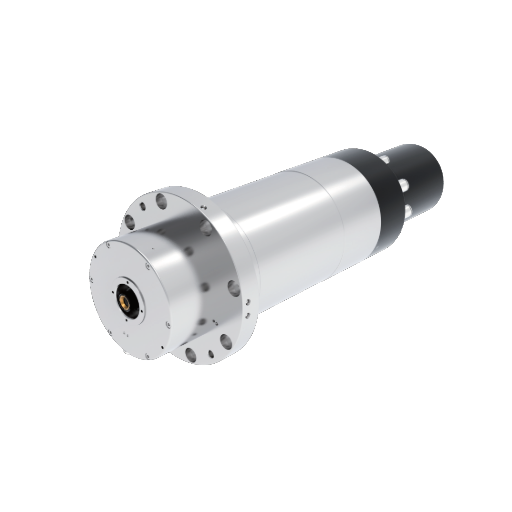

DGZX-15024/13 HSK-E50 Milling Spindle

HSK-E50 changes the role of this 24,000 rpm spindle. Instead of focusing on heavier HSK-A63 tooling, the DGZX-15024/13 addresses high-speed finishing, lower rotating tool mass and machining layouts where compact tool access and dynamic response are important.
Diameter Φ150mm
Maximum speed 24000rpm
Torque(S1) 20Nm
Torque(S6-40%) 30Nm
Power(S1) 13kW
Power(S6-20%) 19.5kW
Request Now
DGZX-15024/13 HSK-E50 Milling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: DGZX-15024/13-HSK
DiameterΦ150mm
Tool interfaceHSK-E50
Bearings LubricationGrease
Motor systemAsynchronous
The highest speed24,000rpm
Voltage380V
Rated power (S1-100%)13kW
Rated torque (S1-100%)20N.m
Rated power (S6-40%)19.5kW
Rated torque (S6-40%)30N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Not supported
Tool inner coolant(Center cooling)Not supported
Tool ChangeCylinder
Motor temperature sensorKTY84-130、PTC
Bearing temperature sensorNot supported
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Vibration sensorNot supported
Displacement sensorOptional
Weight52±2kg

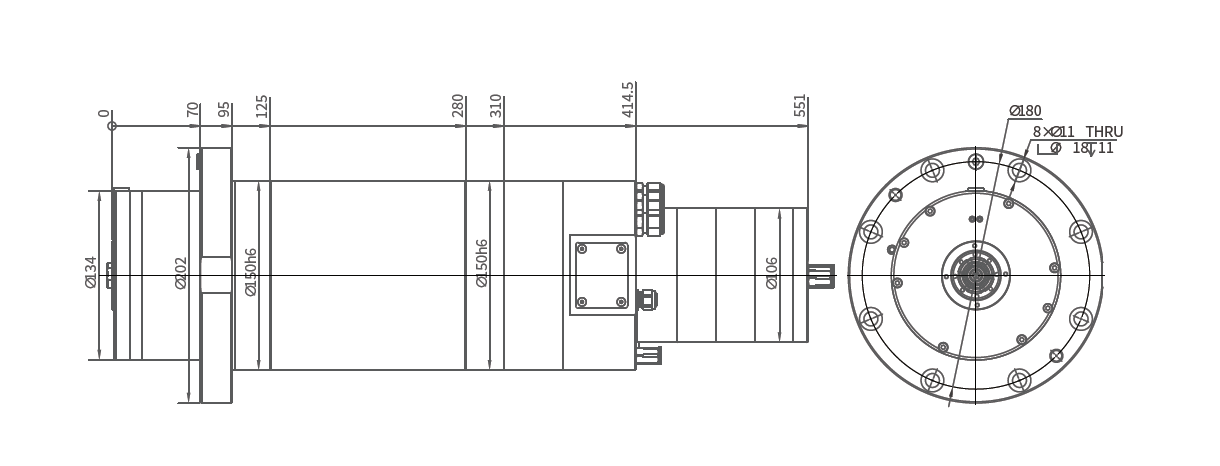

DIMENSIONS
