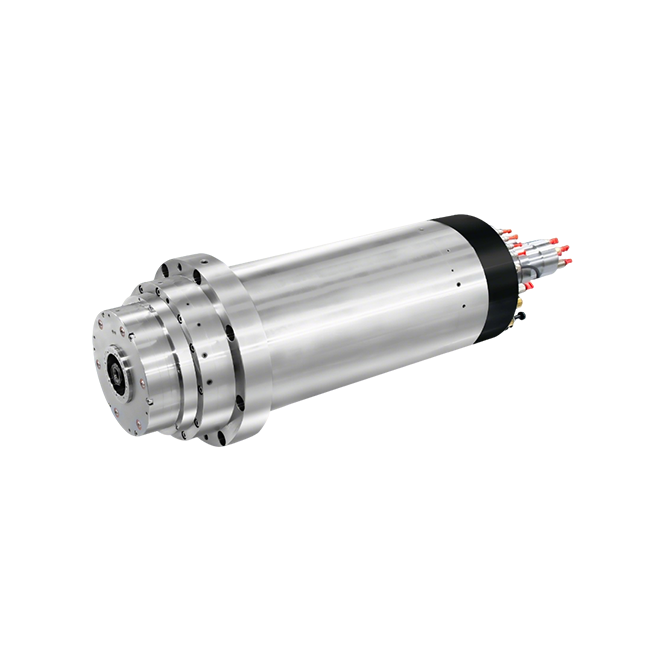

DGZX-15024 High-Speed HSK-A63 Milling Spindle

Speed and compact diameter define the DGZX-15024. The 150 mm spindle reaches 24,000 rpm through an HSK-A63 interface, while oil-air bearing lubrication supports high-speed machining of molds and complex automotive or aerospace surfaces.
Diameter Φ150mm
Maximum speed 24000rpm
Torque(S1) 30.7Nm
Torque(S6-40%) 46Nm
Power(S1) 20kW
Power(S6-20%) 3kW
Request Now
DGZX-15024 High-Speed HSK-A63 Milling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDGZX-15024/20-KFHWQVRS
Motor   Type (Asynchronous)
Power(S1) (kW)20
Power(S6-40%) (kW)30
Torque (S1) (Nm)30.7
Torque(S6-40%) (Nm)46
Max. Speed (rpm24,000
Bearings lubricationOil-air
Tool holderHSK-A63
Tool unclamping unitOil cylinder
Tool outer coolantWater/Oil/Oil mist/air
