DGZX-15015/20 BBT40 Milling Spindle

Not every machining center requires 20,000 or 24,000 rpm. The DGZX-15015/20 keeps the familiar BBT40 interface within a 15,000 rpm range, making it suitable for machining cycles that place greater emphasis on stable cutting and conventional tooling.
Diameter Φ150mm
Maximum speed 15000rpm
Torque(S1) 30.7Nm
Torque(S6-40%) 46Nm
Power(S1) 20kW
Power(S6-20%) 30kW
Request Now
DGZX-15015/20 BBT40 Milling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Model: DGZX-15020/20-BBT
DiameterΦ150mm
Tool interfaceBBT40
Bearings LubricationGrease
Motor systemAsynchronous
The highest speed15,000rpm
Voltage380V/175V
Rated power (S1-100%)20kW
Rated torque (S1-100%)30.7N.m
Rated power (S6-40%)30kW
Rated torque (S6-40%)46N.m
Spindle coolantWater (recommended)
Tool outer coolant(Ring spray)Water/Oil/Oil mist/Air
Tool inner coolant(Center cooling)Water/Oil/Oil mist/Dry air
Tool ChangeHydraulic
Motor temperature sensorKTY84-130、PTC
Bearing temperature sensorOptional
EncoderSin/cos,1VPP
Tool clamping monitor sensor24V、PNP、Normally Open
Vibration sensorNot supported
Displacement sensorOptional
Weight60±2kg

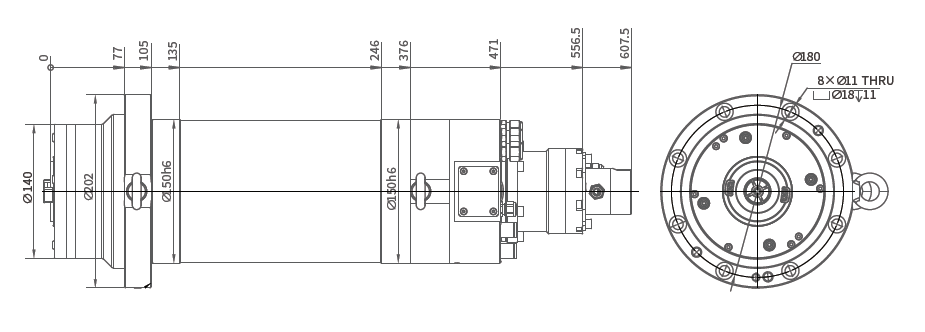

DIMENSIONS
