DYFJM-180(110)20/11A2-F Low-Runout Grinding Spindle

This 180 mm spindle prioritizes geometric control through a 110 mm journal and radial and axial runout limited to 0.0005 mm. Its 300 N/μm radial stiffness supports cylindrical grinding where shaft stability matters more than maximum rotational speed.
Diameter Φ180mm
Maximum speed 2000rpm
Request Now
DYFJM-180(110)20/11A2-F Low-Runout Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Installation outside diameter (mm)φ180
Journal diameter (mm)φ110
Drive oil typeISO VG3
Oil supply pressure (MPa)2.5-3.5
Axial static stiffness (N/μm)≥200
Radial static stiffness (N/μm)≥300
Front end radial runout (mm)≤0.0005
Axial end axial movement (mm)≤0.0005
Rotation precision (mm)≤0.0003
Drive typeBelt drive
Rotation movementClockwise
Rated speed (rpm)1800
Maximum speed (rpm)2000
Application areaUsed for cylindrical grinding machine
Weight (kg)143±5

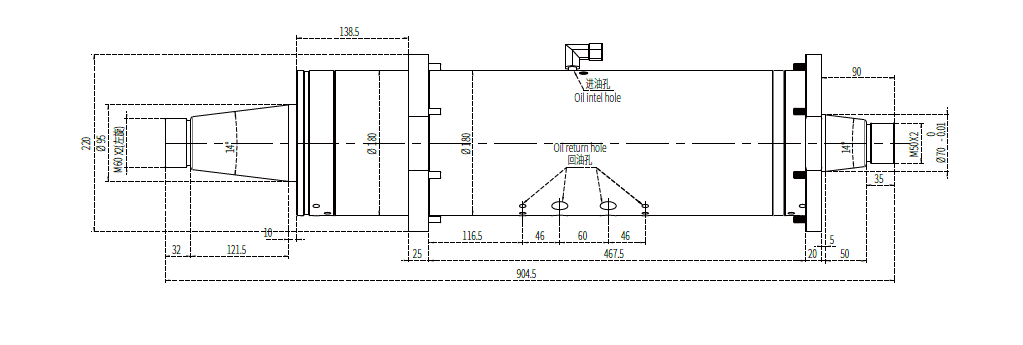

DIMENSIONS
