DYFDM-125(100)36/30-XWS Cam-Grinding Spindle

Rather than prioritizing maximum speed, this DYFDM-125 supplies 79.1 Nm rated torque and 30 kW power for heavier grinding loads. Its 3,800 rpm limit and hydrostatic bearing system suit cylindrical and cam profiles requiring rigidity under sustained cutting force.
Diameter Φ125mm
Maximum speed 3800rpm
Request Now
DYFDM-125(100)36/30-XWS Cam-Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-125(100)36/30-XWS
Height of center (mm)125
Lubricating oil typeISO VG2
Oil supply pressure (MPa)2.5-3.0
Axial static stiffness (N/μm)≥150
Radial static stiffness (N/μm)≥260
Front end radial runout (mm)≤0.0003
Axial end axial movement (mm)≤0.0005
Rotation precision (mm)≤0.0001
Drive typeBuilt-in motor drive
Rotation movementClockwise
Maximum speed (rpm)3800
Max. Frequency (Hz)248
Motor systemAsynchronous motor
Rated voltage (V)380
Power output S1 100% (kW)30
Output torque S1 100% (N·m)79.1
Rated current S1 100% (A)73
Cooling systemOil cooling (Recommended)
Application areaUsed for cylindrical CAM grinding machine
Weight (kg)305±10

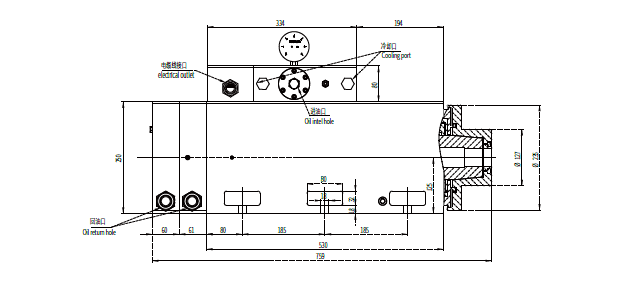

DIMENSIONS
