DYFDM-150(080)15/5.5-XWS Rear-Drive Grinding Spindle

For cylindrical and cam grinders that use a separate rear drive, this model combines 3,000 rpm operation with balanced axial and radial stiffness. Its 5.5 kW asynchronous motor and oil-cooled hydrostatic support suit controlled, continuous grinding cycles.
Diameter Φ150mm
Maximum speed 3000rpm
Request Now
DYFDM-150(080)15/5.5-XWS Rear-Drive Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-150(080)15/5.5-XWS
Height of center (mm)170
Lubricating oil typeISO VG5
Oil supply pressure (MPa)2.5-5.0
Axial static stiffness (N/μm)≥150
Radial static stiffness (N/μm)≥150
Front end radial runout (mm)≤0.0005
Axial end axial movement (mm)≤0.0005
Rotation precision (mm)≤0.0002
Drive typeRear motor drive
Rotation movementClockwise
Maximum speed (rpm)3000
Max. Frequency (Hz)100
Motor systemAsynchronous motor
Rated voltage (V)300
Power output S1 100% (kW)5.5
Output torque S1 100% (N·m)35
Rated current S1 100% (A)14
Cooling systemOil cooling (Recommended)
Application areaUsed for cylindrical CAM grinding machine
Weight (kg)278±10

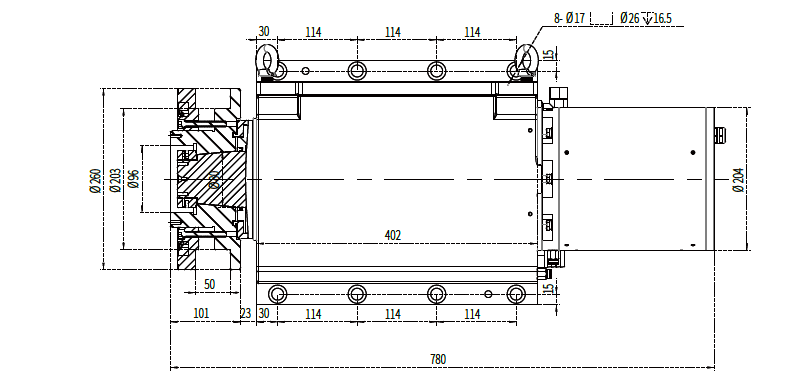

DIMENSIONS
