DYFDM-125(080)66/35-XWS Hydrostatic Grinding Spindle

This version raises both power and speed within the DYFDM-125 range. Its 35 kW motor reaches 6,000 rpm, while the hydrostatic system provides at least 260 N/µm radial stiffness for productive cylindrical and cam grinding.
Diameter Φ125mm
Maximum speed 6000rpm
Request Now
DYFDM-125(080)66/35-XWS Hydrostatic Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-125(080)66/35-XWS
Height of center (mm)125<\>
Lubricating oil type<\>ISO VG2<\>
Oil supply pressure (MPa)<\>2.5-3.0<\>
Axial static stiffness (N/μm)<\>≥150<\>
Radial static stiffness (N/μm)<\>≥260<\>
Front end radial runout (mm)<\>≤0.0003<\>
Axial end axial movement (mm)<\>≤0.0005<\>
Rotation precision (mm)<\>≤0.0001<\>
Drive type<\>Built-in motor drive<\>
Rotation movement<\>Clockwise<\>
Maximum speed (rpm)<\>6000<\>
Max. Frequency (Hz)<\>200<\>
Motor system<\>Asynchronous motor<\>
Rated voltage (V)<\>380<\>
Power output S1 100% (kW)<\>35<\>
Output torque S1 100% (N·m)<\>56.9<\>
Rated current S1 100% (A)<\>68<\>
Cooling system<\>Oil cooling (Recommended)<\>
Application area<\>Used for cylindrical CAM grinding machine<\>
Weight (kg)<\>320±10<\>

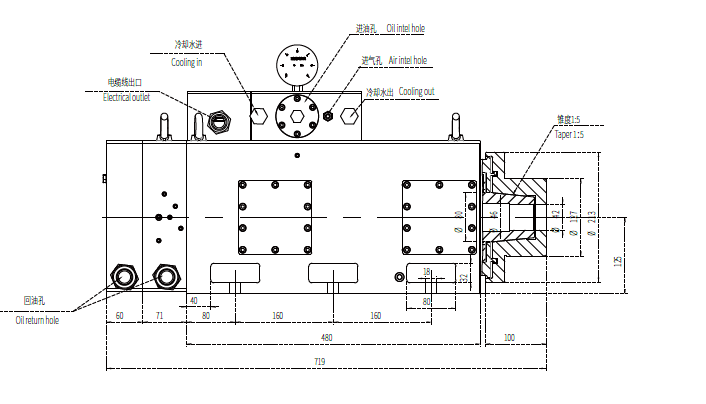

DIMENSIONS
