DYFJM-180(100)20/15A2-F Hydrostatic Grinding Spindle

This DYFJM-180 configuration increases maximum speed to 2,500 rpm while using a 100 mm internal mounting dimension. Balanced axial and radial stiffness make it a general cylindrical-grinding option distinct from the lower-runout 110 mm journal version.
Diameter Φ180mm
Request Now
DYFJM-180(100)20/15A2-F Hydrostatic Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Installation outside diameter (mm)Φ180 / Φ100
Journal diameter-
Drive oil typeISO VG3
Oil supply pressure (MPa)2.0-2.5
Axial static stiffness (N/μm)≥200
Radial static stiffness (N/μm)≥200
Front end radial runout (mm)≤0.001
Axial end axial movement (mm)≤0.001
Rotation precision (mm)≤0.0003
Drive typeBelt drive
Rotation movementClockwise
Rated speed (rpm)1900
Maximum speed (rpm)2500
Application areaUsed for cylindrical grinding machine
Weight (kg)200±5

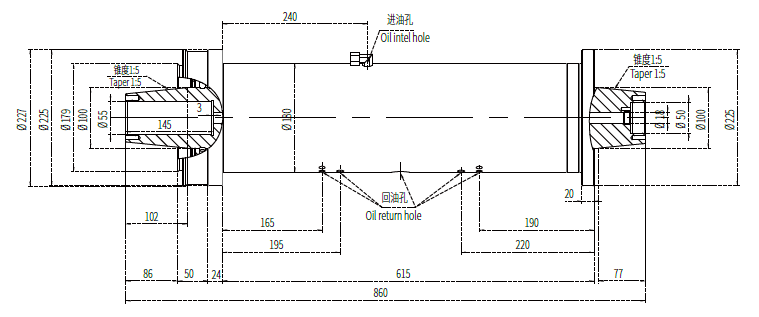

DIMENSIONS
