DYFJM-125(065)15/5.5-X Hydrostatic Tailstock Spindle

Unlike motor-driven grinding spindles, this DYFJM-125 model is designed as a driven tailstock spindle. Its bidirectional rotation, 1,500 rpm limit and low radial and axial runout support accurate workpiece alignment and secondary support in machine tools.
Diameter Φ125mm
Maximum speed 1500rpm
Request Now
DYFJM-125(065)15/5.5-X Hydrostatic Tailstock Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle Model
Installation outside diameter (mm)125
Journal diameter (mm)Φ65
Drive oil typeISO VG5
Oil supply pressure (MPa)2.5-5.0
Axial static stiffness (N/μm)≥300
Radial static stiffness (N/μm)≥250
Front end radial runout (mm)≤0.0005
Axial end axial movement (mm)≤0.0005
Rotation precision (mm)≤0.0002
Drive typeDriven shaft
Rotation movementBidirectional rotation
Rated speed (rpm)1300
Maximum speed (rpm)1500
Application areaUsed for machine tool tailstock
Weight (kg)125±5

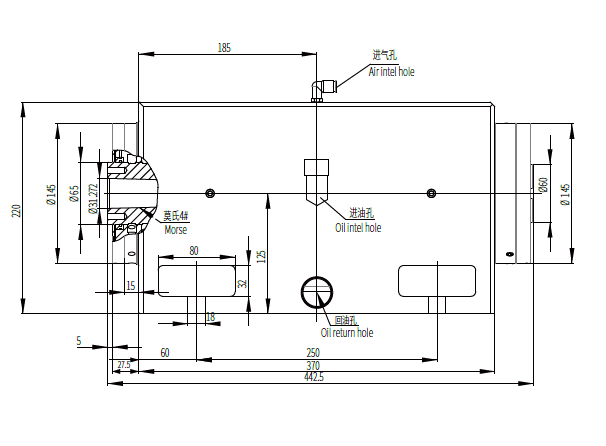

DIMENSIONS
