DYFJM-120(065)28/5.5A2-F High-Rigidity Spindle

Radial stiffness is the defining specification of this compact DYFJM-120 model. Its stated value of at least 800 N/μm supports cylindrical grinding loads while the 120 mm installation diameter and 58 kg weight help limit the machine-space requirement.
Diameter Φ120mm
Maximum speed 2200rpm
Request Now
DYFJM-120(065)28/5.5A2-F High-Rigidity Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle Model
Installation outside diameter (mm)φ120
Journal diameter (mm)φ65
Drive oil typeISO VG3
Oil supply pressure (MPa)2.0-2.5
Axial static stiffness (N/μm)≥100
Radial static stiffness (N/μm)≥800
Front end radial runout (mm)≤0.001
Axial end axial movement (mm)≤0.001
Rotation precision (mm)≤0.0003
Drive typeBelt drive
Rotation movementClockwise
Rated speed (rpm)2200
Maximum speed (rpm)2200
Application areaUsed for cylindrical grinding machine
Weight (kg)58±1

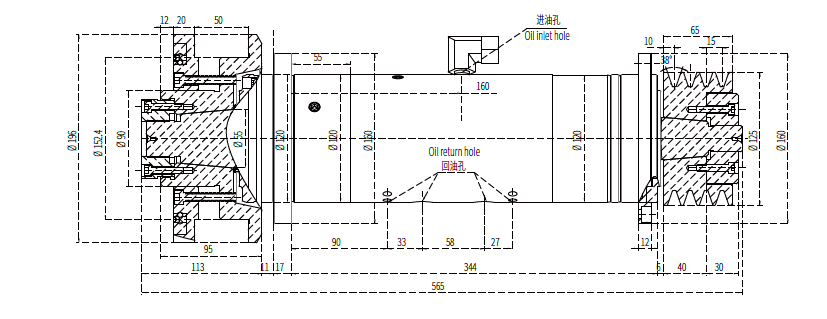

DIMENSIONS
