DYFDM-300 Hydrostatic B-Axis Spindle

The DYFDM-300 functions as a hydrostatic B-axis unit for vertical grinding machines rather than as a high-speed wheel spindle. Its 300 mm disc, 87 Nm continuous torque and exceptionally high axial stiffness support slow, precise rotary positioning under grinding loads.
Request Now
DYFDM-300 Hydrostatic B-Axis Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-300(320)0.6/0.75-WS
Disc diameter (mm)Φ300
Drive oil typeISO VG10
Oil supply pressure (MPa)2.0-3.0
Axial static stiffness (N/μm)≥2500
Radial static stiffness (N/μm)≥400
Front end radial runout (mm)≤0.001
End face runout (mm)≤0.001
Rotation accuracy (mm)≤0.0003
Drive typeBuilt-in motor drive
Rotation movementTwo-way rotation
Maximum speed (rpm)60
Max. Frequency (Hz)52
Motor systemSynchronous motor
Rated voltage (V)380
Power output S1 100% (kW)1.3
Output torque S1 100% (N·m)87
Rated current S1 100% (A)4
Cooling systemWater cooling (Recommended)
Application areaUsed for B axis rotary table of vertical grinding machine
Weight (kg)227±10

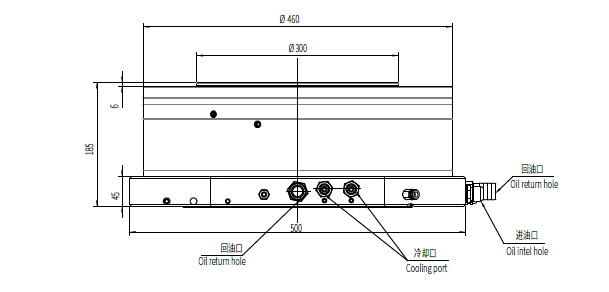

DIMENSIONS
