DYFDM-200(100)20/23-F Raceway Grinding Spindle

Raceway grinding places particular demands on torque, rotational stability and spindle geometry. The DYFDM-200 combines a rear-mounted 23 kW synchronous motor with 110 Nm continuous torque and oil cooling for dedicated raceway grinding machines.
Diameter Φ200mm
Maximum speed 2500rpm
Request Now
DYFDM-200(100)20/23-F Raceway Grinding Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-200(100)20/23-F
Installation outside diameter (mm)φ200
Drive oil typeISO VG5
Oil supply pressure (MPa)2.5-3
Axial static stiffness (N/μm)≥350
Radial static stiffness (N/μm)≥200
Front end radial runout (mm)≤0.001
Axial end axial movement (mm)≤0.001
Rotation precision (mm)≤0.0003
Drive typeRear motor drive
Rotation movementAnticlockwise
The highest speed (rpm)2500
Max. Frequency (Hz)167
Motor systemSynchronous motor
The rated voltage (V)380
Power output S1 100% (kW)23
Output torque S1 100% (N·m)110
Rated current S1 100% (A)43
Cooling systemOil cooling (recommended)
Application areaUsed for raceway grinding machine
Net weight (kg)190±2

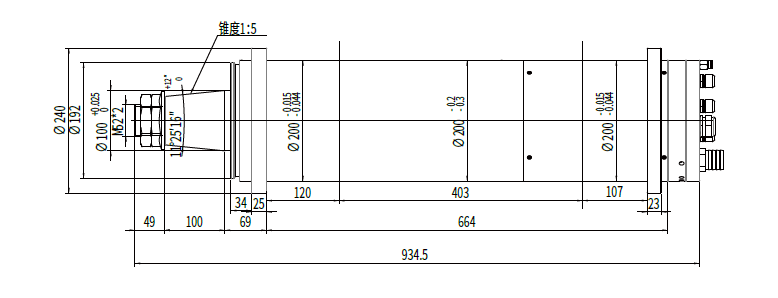

DIMENSIONS
