DYFDM-170(100)30/22-XWS Hydrostatic Headstock Spindle

The DYFDM-170 is intended for machine-tool headstocks that need stronger continuous torque and tightly controlled radial motion. Its built-in synchronous motor delivers 140 Nm at S1 duty, while the specified front-end radial runout supports precision workpiece rotation.
Maximum speed 3500rpm
Request Now
DYFDM-170(100)30/22-XWS Hydrostatic Headstock Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

ModelDYFDM-170(100)30/22-XWS
Height of center (mm)145
Lubricating oil typeISO VG3
Oil supply pressure (MPa)3.0-4.0
Axial static stiffness (N/μm)≥350
Radial static stiffness (N/μm)≥250
Front end radial runout (mm)≤0.0001
Axial end axial movement (mm)≤0.001
Rotation precision (mm)≤0.0003
Drive typeBuilt-in motor drive
Rotation movementClockwise
The highest speed (rpm)3500
Max. Frequency (Hz)233.3
Motor systemSynchronous motor
The rated voltage (V)380
Power output S1 100% (kW)22
Output torque S1 100% (N·m)140
Rated current S1 100% (A)41
Cooling systemOil cooling (recommended)
Application areaUsed for machine tool headstock
Net weight (kg)395±1

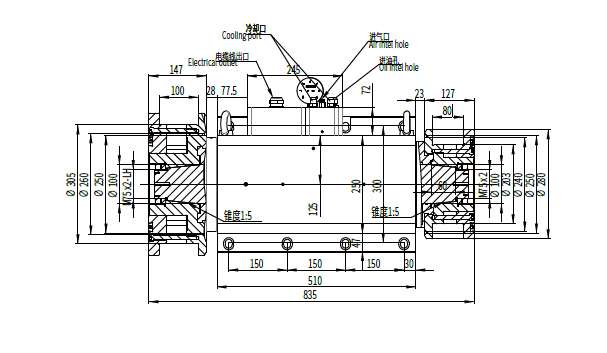

DIMENSIONS
