DQFH-02360 64 mm Dicing Spindle

A 64 mm body and 6.6 kg weight separate this DQFH-02360 from the larger 82 mm versions. It delivers 1.8 kW continuously at up to 60,000 rpm for space-limited dicing machines.
Diameter Φ64mm
Maximum speed 60000rpm
Torque(S1) 0.25Nm
Torque(S6-40%) 0.3Nm
Power(S1) 1.8kW
Power(S6-20%) 2.2kW
Request Now
DQFH-02360 64 mm Dicing Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle ModelDQFH-02360/1.8
The highest speed (rpm)60,000
Tool interfaceGeneric dicing blades
Bearing typeAir bearing
Max. Frequency (Hz)1000
Motor systemSynchronous
The rated voltage (V)220
Power output S1 100% (kW)1.8
Power output S6 40% (kW)2.2
Output torque S1 100% (N·m)0.25
Output torque S6 40% (N·m)0.3
Rated current S1 100% (A)5.1
Rated current S6 40% (A)6.1
Gas flow (L/min)90-102
Cooling systemWater cooling
The cooling flow rate (L/min)≥2
Motor temperature sensor typeKTY84-130
Tool changeManual
Vibration velocity (mm/s)≤0.5
Weight (kg)6.6

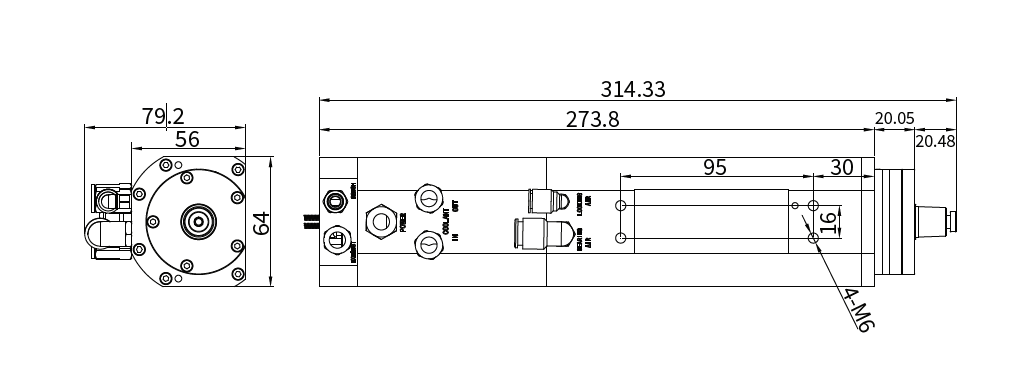

DIMENSIONS
