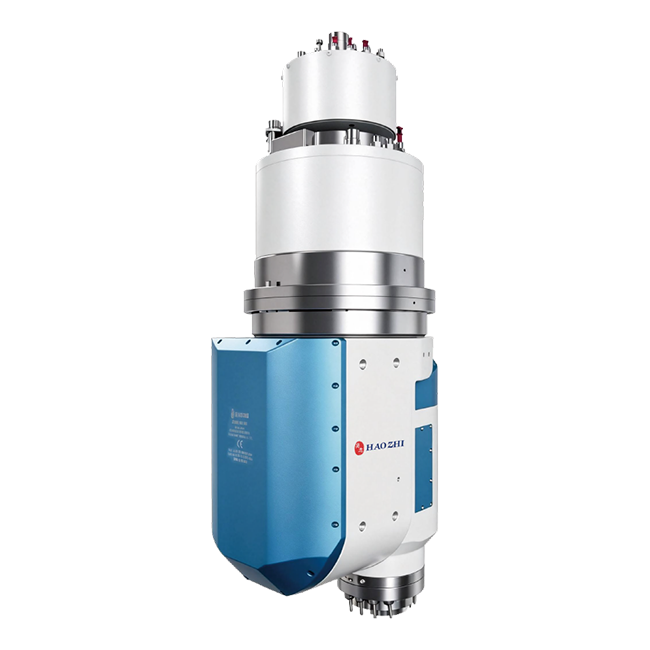

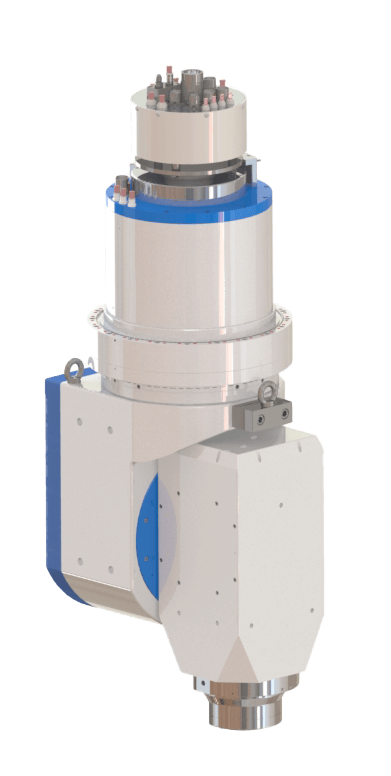

DBDP-310 Compact High-Speed Milling Head

The DBDP-310 reduces flange size and product weight while raising spindle speed to 20,000 rpm. Its compact clamping mechanism and HSK-A63 interface target machines that need responsive two-axis positioning and high-speed surface finishing.

Request Now
DBDP-310 Compact High-Speed Milling Head

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Shaft type

Swing shaftRotation shaft
Size of mounted flange(mm)/φ310g7
Rated voltage(V)380380
Rated torque(N.m)248386
Max. torque(N.m)466772
Rated speed(rpm)6060
Brake clamping torque(N.m)/0.6MPa10802160
EncoderDrive-GIQ26 Absolute
Positioning accuracy(arcsec)±10±10
Repeated accuracy(arcsec)±2±2
Cooling systemWater cooling
Product weight(kg)≈334


Electric spindle parameters
Rated speed(rpm)6000
Max. speed(rpm)20000
Rated voltage(V)380
Rated output power(S1-100%/S6-40%)(kW)20/30
Rated output torque(S1-100%/S6-40%)(N.m)30.7/46
Rated current(A)38
Knife handle interfaceHSK-A63
Tool tension(N)18000-24000
Tool unloading pressure(MPa)4.0-8.0
Runout of taper hole of shaft end(mm)≤0.003
Runout of standard test bar at 100mm (mm)≤0.003
Runout of standard test bar at 300mm (mm)≤0.008
Cooling demand3.5kW(max), Medium: Water
EncoderZ=128, sin/cos, 1Vpp
Spindle vibration value (mm/s)≤1
Bearing lubrication modeGrease lubrication
Motor winding temperature detectionKTY84-130 PTC
