Motorized Spindle Solutions for Liquid Cooling Component Machining: Supporting Machine Tool Manufacturers in Enhancing Equipment Competitiveness

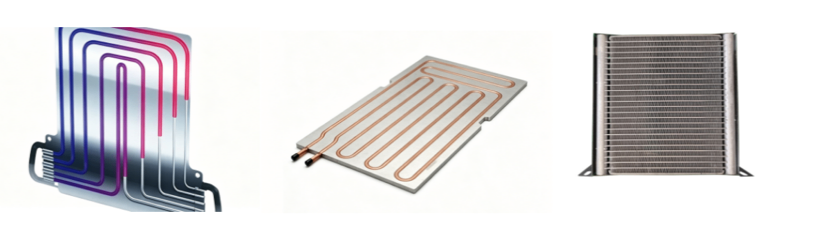

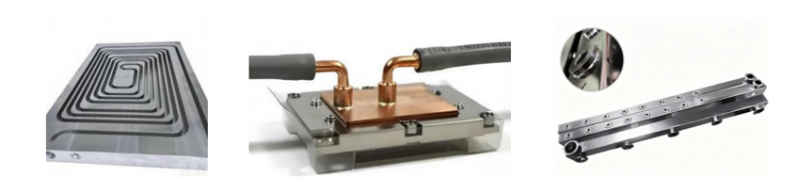

The rapid growth of the liquid cooling industry is driving significant demand for high-precision machining of core components, including copper and aluminum cold plates, fluid distribution manifolds, and Universal Quick Disconnect (UQD) connectors. This trend presents both opportunities and technical challenges for machine tool manufacturers upgrading their equipment lineups.

When selecting spindle components, machine tool builders must carefully balance strict precision, processing efficiency, and operational stability against overall manufacturing costs and long-term maintenance requirements.

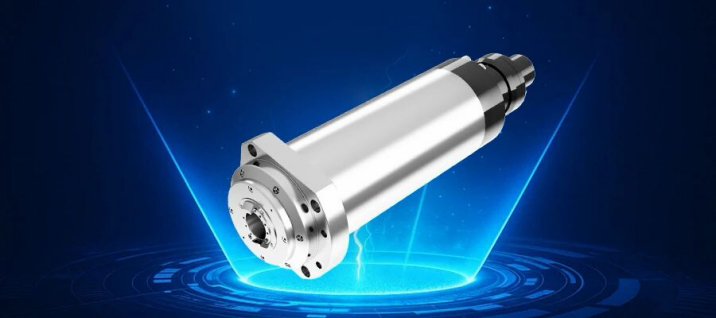

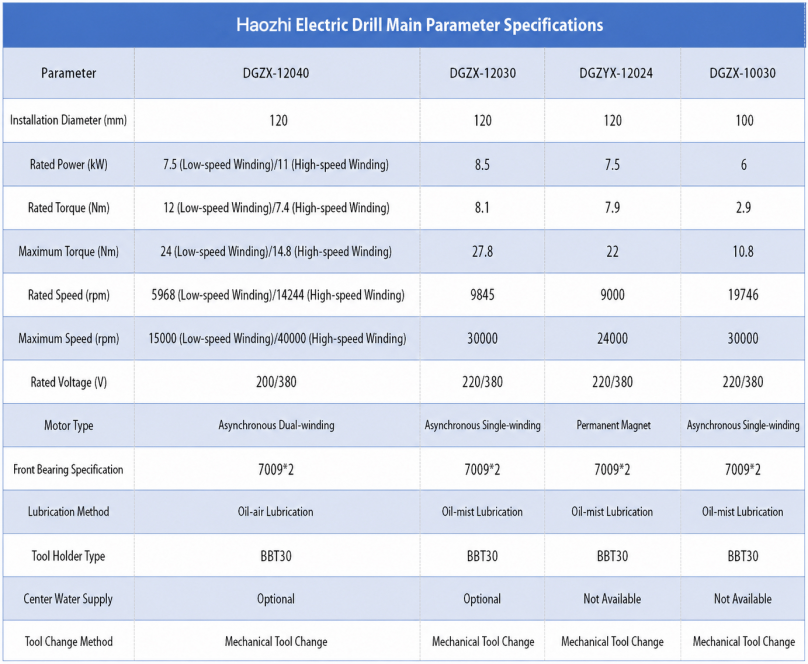

Haozhi’s series of drilling and tapping motorized spindles are engineered specifically for high-volume drilling, tapping, and milling operations across copper, aluminum, and stainless steel cooling components. By optimizing spindle design, Haozhi supports machine tool builders in four key areas: machining efficiency, component finish quality, multi-material adaptability, and seamless system integration.

1. Rapid Acceleration and High Rotational Speeds to Improve Machining Productivity

Production efficiency in liquid cooling component manufacturing depends heavily on cycle times, where spindle acceleration and switching speeds play a central role.

• Fast Dynamic Response: The motorized spindle reaches 24,000 RPM in 0.6 seconds and 30,000 RPM in 1.1 seconds. Compared to traditional mechanical direct-drive spindles, this enhanced dynamic response reduces idle time during frequent start-stop cycles.

• High-Speed Capabilities: Configured with oil-air lubrication, the spindle operates continuously at speeds up to 40,000 RPM. For light-load, high-speed milling of aluminum cold plates, this enables higher feed rates and reduced total operation time.

• Efficient Tool Changing: Equipped with a rapid tool-release cylinder mechanism, the tool knockout stroke is completed in under 50 ms, minimizing non-cutting times during multi-tool processing.

By streamlining acceleration, tool changes, and cutting speeds, these performance features help machine builders deliver higher-throughput equipment to end users.

2. High Rigidity and Low Vibration for Thin-Walled Flow Channels

Internal flow channels in liquid cooling plates often feature thin partition walls and deep grooves. During deep grooving or thin-wall milling, low spindle rigidity can induce chatter, leading to surface defects, tool wear, or wall deformation.

Haozhi motorized spindles utilize an integrated motor architecture paired with large-diameter bearing layouts to maintain high structural rigidity and low vibration levels under load. When paired with appropriate cutting parameters, this configuration helps achieve:

• Consistent and uniform channel wall thickness.

• Superior internal wall surface finish with reduced chatter marks.

• Improved success rates during customer trial cuts and quality inspections.

Machining Result Comparison:

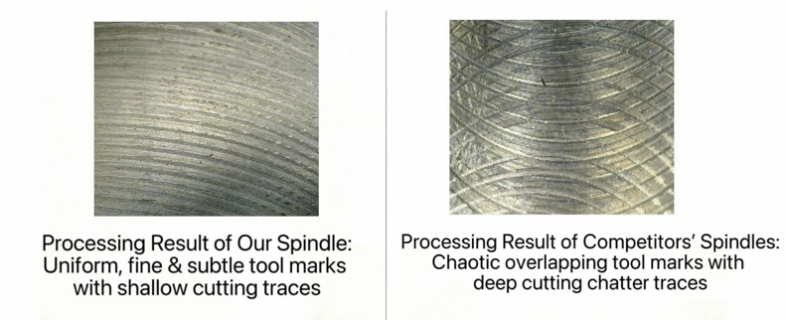

• Optimized Spindle Processing: Uniform, fine tool marks with shallow, consistent cutting traces.

• Standard / Conventional Processing: Overlapping tool marks caused by severe vibration, resulting in chatter traces.

3. Dual-Winding Motor Design for Diverse Material Applications

Liquid cooling systems incorporate diverse materials—ranging from soft aluminum and highly conductive copper to tough stainless steel. A single-torque spindle curve often struggles to optimize both low-speed heavy cutting and high-speed fine finishing.

To address diverse process requirements, Haozhi offers motorized spindles with optional dual-winding motor technology and oil-air lubrication setups:

• Low-Speed Winding: Delivers a rated torque of 12 N·m for heavy-duty low-speed milling and tapping operations.

• High-Speed Winding: Delivers a rated torque of 7.4 N·m for high-speed finishing cuts.

This balanced torque-speed profile allows a single machine model to flexibly handle copper cold plates, aluminum manifolds, and stainless steel connectors without sacrificing performance at either speed extreme.

4. Direct-Drive Replacement and Broad System Compatibility

To assist OEMs in controlling machine development cycles and operational costs, Haozhi motorized spindles are designed for straightforward integration:

• Direct-Drive Replacement: Integrated motor designs eliminate external motors, belts, and mechanical couplings, offering a compact footprint that simplifies assembly and reduces long-term maintenance points.

• System Integration: Fully compatible with major CNC control and drive systems, including Siemens, Mitsubishi, HEIDENHAIN, and FANUC. Standard interfaces support integration with various tool magazine configurations.

Partnering for Custom Liquid Cooling Machining Solutions

As precision requirements for liquid cooling thermal management systems continue to evolve, selecting the right core components is crucial for machine tool performance. Guangzhou Haozhi Industrial offers tailored technical support and spindle configurations to help machine tool builders meet specific customer requirements.

Contact our engineering team with your workpiece parameters and operational requirements to discuss customized spindle support solutions. Contact Us！
