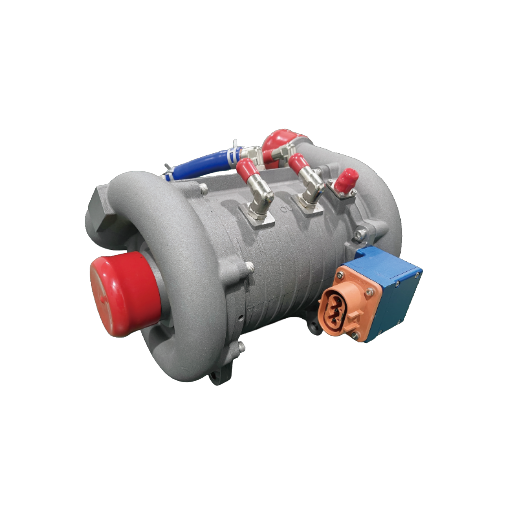

DK-GF180B Two-Stage Fuel Cell Air Compressor

Built without an energy-recovery turbine, the DK-GF180B focuses on conventional two-stage supercharging. Its 13–245 g/s flow range, 30 kW motor and 3.5 maximum pressure ratio suit fuel cell systems requiring broad airflow control in an IP67 package.
Request Now
DK-GF180B Two-Stage Fuel Cell Air Compressor

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle ModelDK-GF180B
Structural formTwo-stage supercharging
Flow range (g/s)13-245
Speed range (rpm)30000-95000
Voltage (VDC)450-750
Air compressor weight (kg)15.2
Temperature of the intake air (°C)-30~45
Type of BearingAir suspension bearing
Maximum compression ratio3.5
Max. motor power (kW)30
Start-stop life (times)300000
Controller weight (kg)7.3
Protection levelIP67

DIMENSIONS
