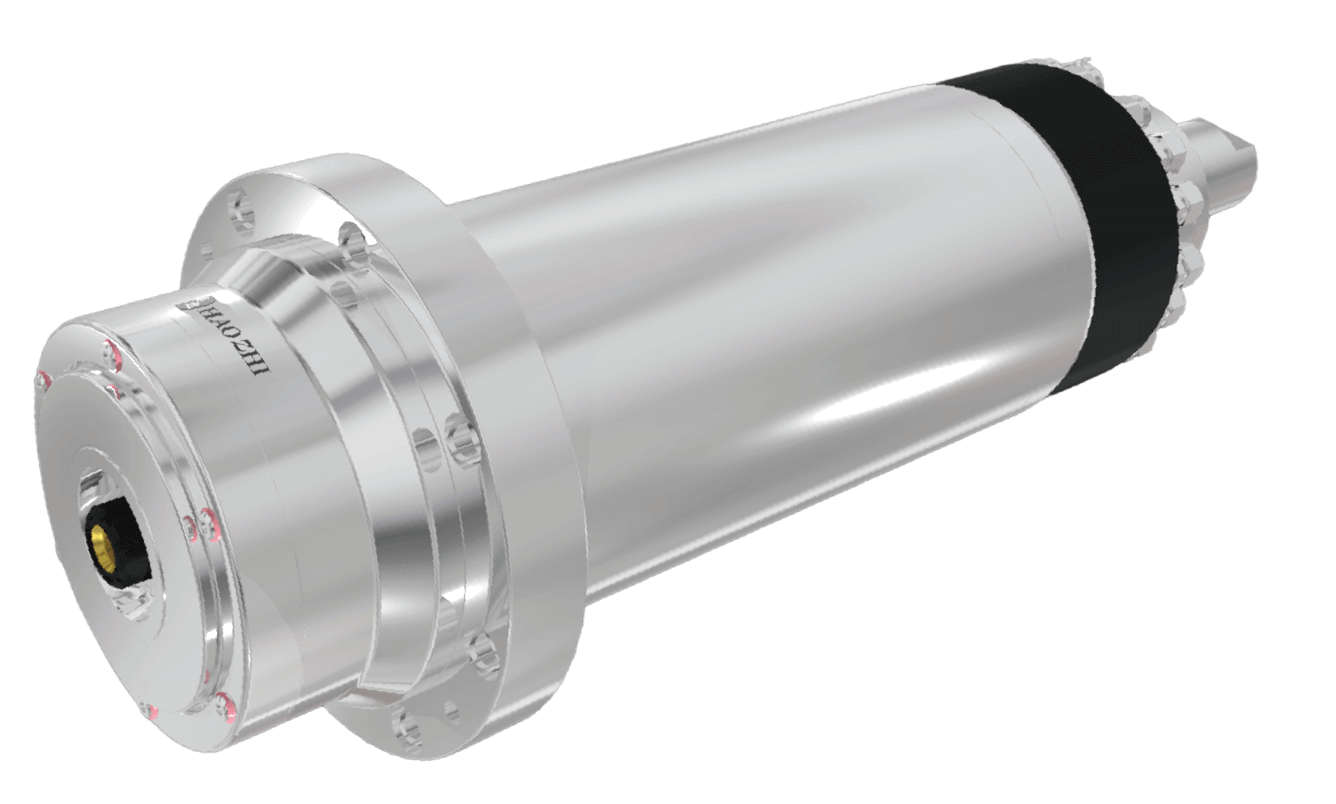

DGZYX-15020 High-Torque Milling Spindle

The DGZYX-15020 prioritizes cutting torque over extreme spindle speed. Its 22 kW continuous output, 42 Nm rated torque and HSK-A63 or BB140 tooling support larger cutters, deeper cuts and coolant-through-spindle machining.
Diameter Φ150mm
Maximum speed 20000rpm
Torque(S1) 42Nm
Torque(S6-40%) 63Nm
Power(S1) 22kW
Power(S6-20%) 33kW
Request Now
DGZYX-15020 High-Torque Milling Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle modelDGZYX-15020/22
DiameterΦ150mm
Length590.5mm
Tool InterfaceHSK-A63 / BB140
Max. Speed20,000 rpm (Grease)
Motor technologySynchronous motor
Power S1-100%22kW
Power S6-40%(2 min)33kW
Torque S1-100%42Nm
Torque S6-40%(2 min)63Nm
Spindle coolingWater
Coolant through shaftWater / Oil mist
EncoderSin/cos, 1 Vpp
Thermistor in coilKTY84-130
Thermistor for bearingsNon-supported
Vibration sensorNon-supported
Spindle growth systemNon-supported
TurningNon-supported
Weight55kg
