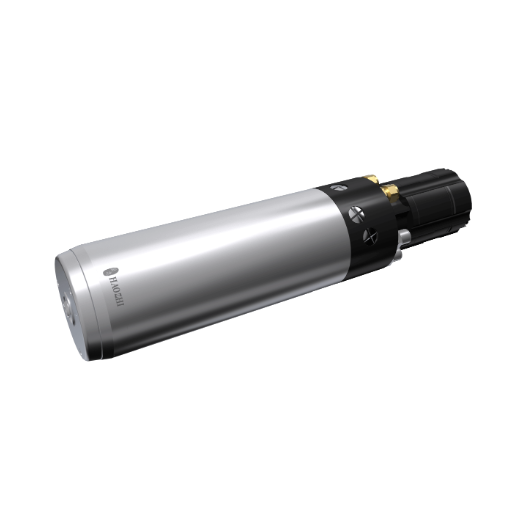

DGZX-08040 ISO20 High-Speed Spindle

The ISO20 interface defines this DGZX-08040 configuration. A compact 80 mm body, 40,000 rpm speed and 6 kW intermittent output suit engraving machines already designed around ISO20 tooling and pneumatic tool change.
Diameter Φ80mm
Maximum speed 40000rpm
Torque(S1) 1.29Nm
Torque(S6-40%) 1.93Nm
Power(S1) 4kW
Power(S6-20%) 6kW
Request Now
DGZX-08040 ISO20 High-Speed Spindle

INTRODUCTION

FEATURES

APPLICATION

FAQ

TECHNICAL DATA

Spindle model
Diameterφ80mm
The highest speed40,000rpm
Tool InterfaceISO 20
BearingtypeCeramic ball bearing
Max.Frequency1333Hz
Motor systemAsynchronous
The rated voltage380V
Power outputS1 100%4.0kW
Power output S6 40%6.0kW
Output torque S1 100%1.29N·m
Output torque S6 40%1.93N·m
Rated current S1 100%8.2A
Rated current S6 40%12.3A
Air seal gas flow rate50±15L/min (Air pressure 0.15MPa)
Cooling systemWater cooling (Recommended)
The cooling flow rate2~3L/min (Water pressure 0.25MPa)
Motor temperature sensor typeKTY or PTC(Optional)
Tool changeAir cylinder
Tool change air pressure0.55-0.60MPa
Vibration velocity≤0.8mm/s
Weight8±1kg

DIMENSIONS
